Back-Roller Design

Single bag

Stylish rear pannier bag in limited design edition design.

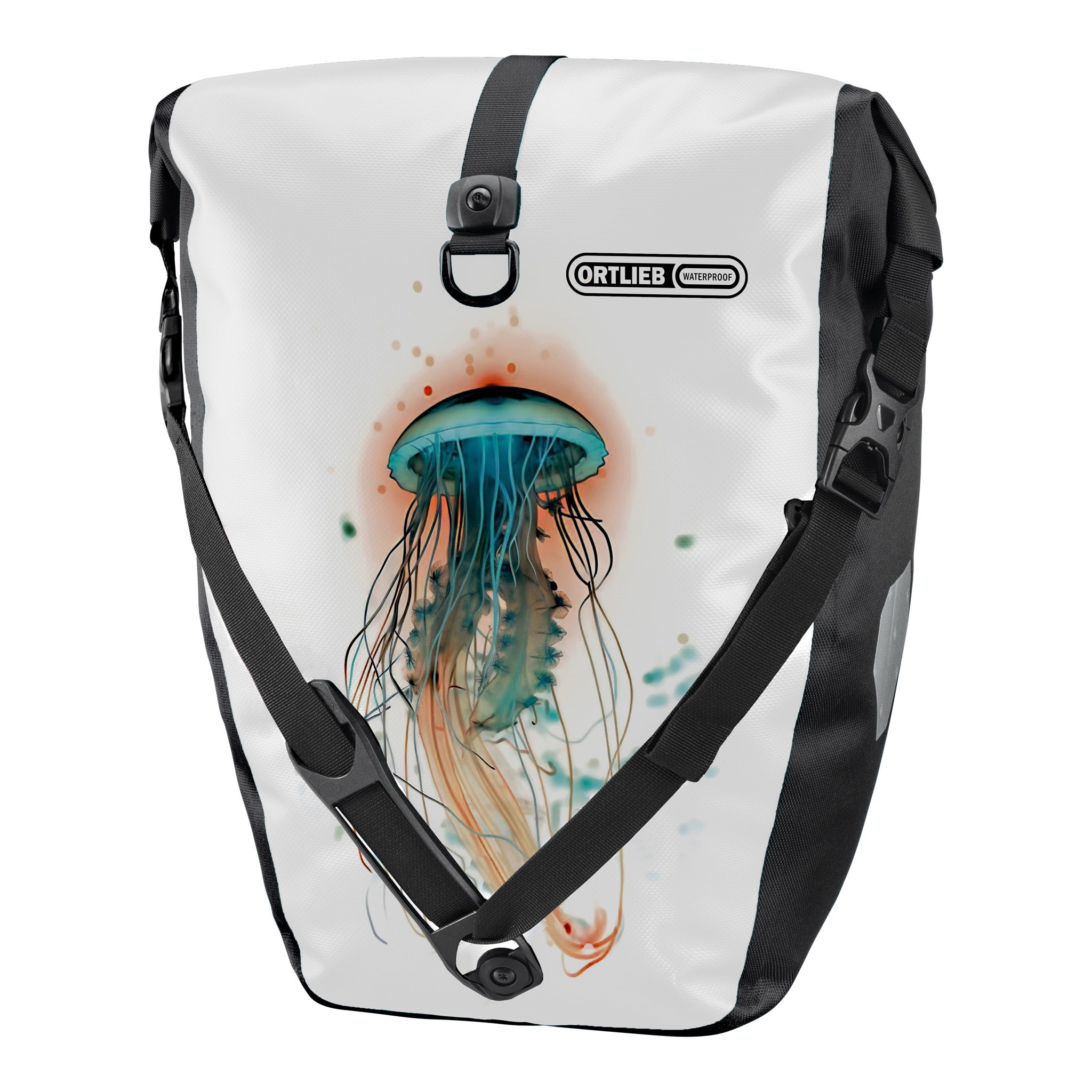

Color: Design "Jellyfish"

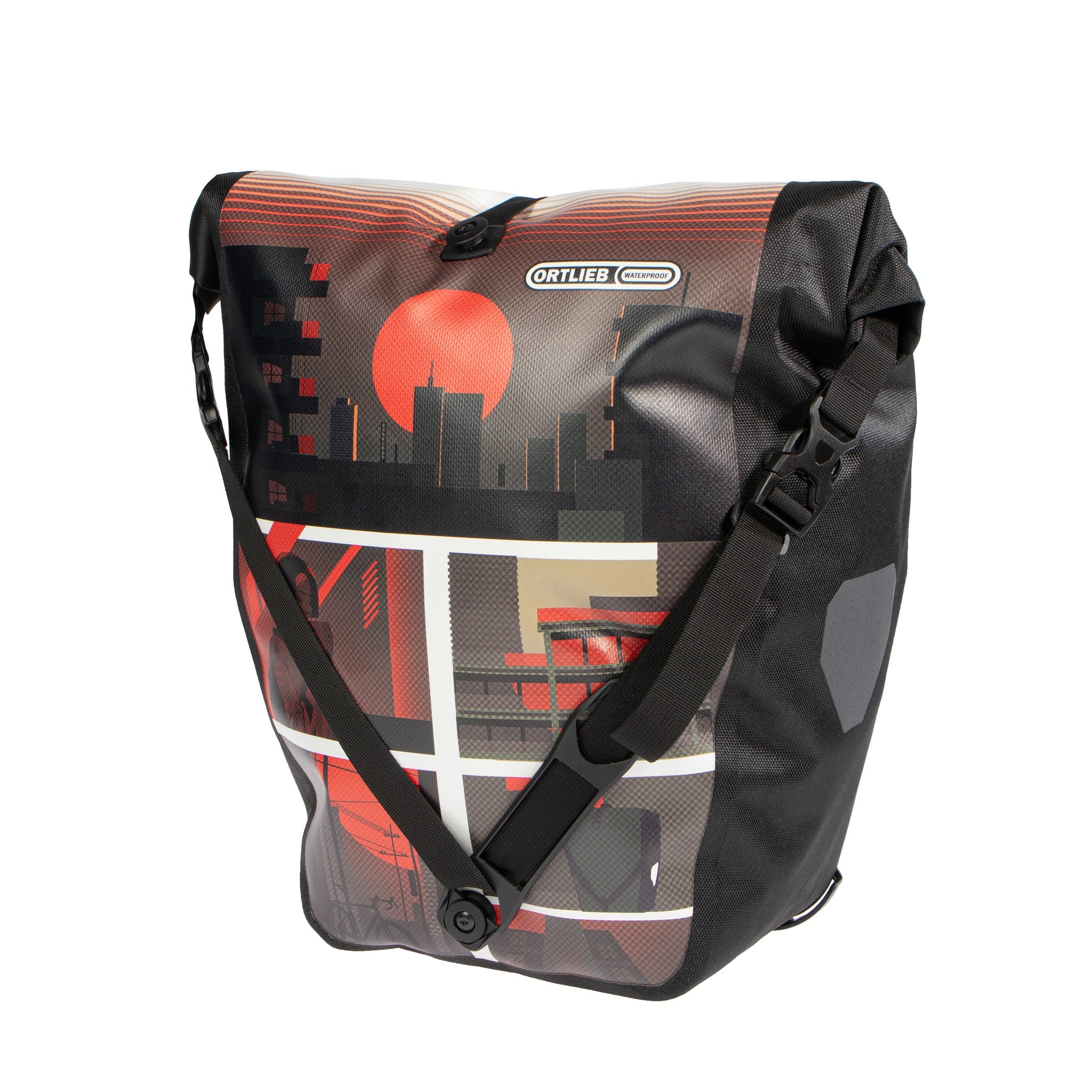

Front view of ORTLIEB Back-Roller Design bag in design "Morning Routine" with red sun graphic

Front view of ORTLIEB Back-Roller Design bag in camouflage olive with chain pattern

Front view of ORTLIEB Back-Roller Design bag in Route No.1 with dynamic line print

front view of ORTLIEB Back-Roller Design bag in petrol blue with graphic stripe pattern

SKU: F5531

In stock – Delivery time: 2-3 business days

5 year

5-Year Warranty

ORTLIEB-Warranty

The ORTLIEB warranty, limited to five years, is a voluntary warranty provided by the manufacturer. It grants additional rights independent of the rights granted by consumer protection laws. Should a product be replaced within the warranty period, the date of first delivery continues to apply to the five-year warranty period.

This worldwide, free of charge warranty of five years from delivery refers to material defects and processing errors. Scuff marks, holes and cracks caused by the customer's own fault are not covered by the warranty. Claims for defects due to normal wear and tear, improper use, non-observance of the assembly instructions, third-party intervention as well as due to improper storage are excluded. No warranty is given for damage due to improper care and improper use. As a rule, however, such damage can be repaired at cost price.

Consumer Protection Law

Important: The provisions of the ORTLIEB warranty, which is limited to five years, do not apply to claims arising from statutory consumer protection rights. These statutory rights are not limited by the warranty. Thus, the benefits under the five-year limited ORTLIEB warranty are intended to supplement and not replace the rights granted by consumer protection laws.

If a product is defective, consumers may in particular claim the rights under §§ 434 et seq., §§ 474 et seq. of the German BGB (German Civil Code). Consumers can choose whether to claim performance under the ORTLIEB warranty, which is limited to five years, or under their statutory consumer protection rights.

The first point of contact for warranty claims is always the specialist or online dealer with whom the purchase contract for the product was concluded. This warranty is subject to the laws of the Federal Republic of Germany.

Status: July 2022

Plus $20.00 AUD costs

$169.95

Tax included.

Back-Roller Design

$169.95

Once again this year, Back-Roller Design has really dressed up. But the design variants not only offer an impressive appearance, they also deliver proven functionality. Thanks to the Quick-Lock mounting system, this practical rear wheel bag is just as reliable as its single-colour siblings.

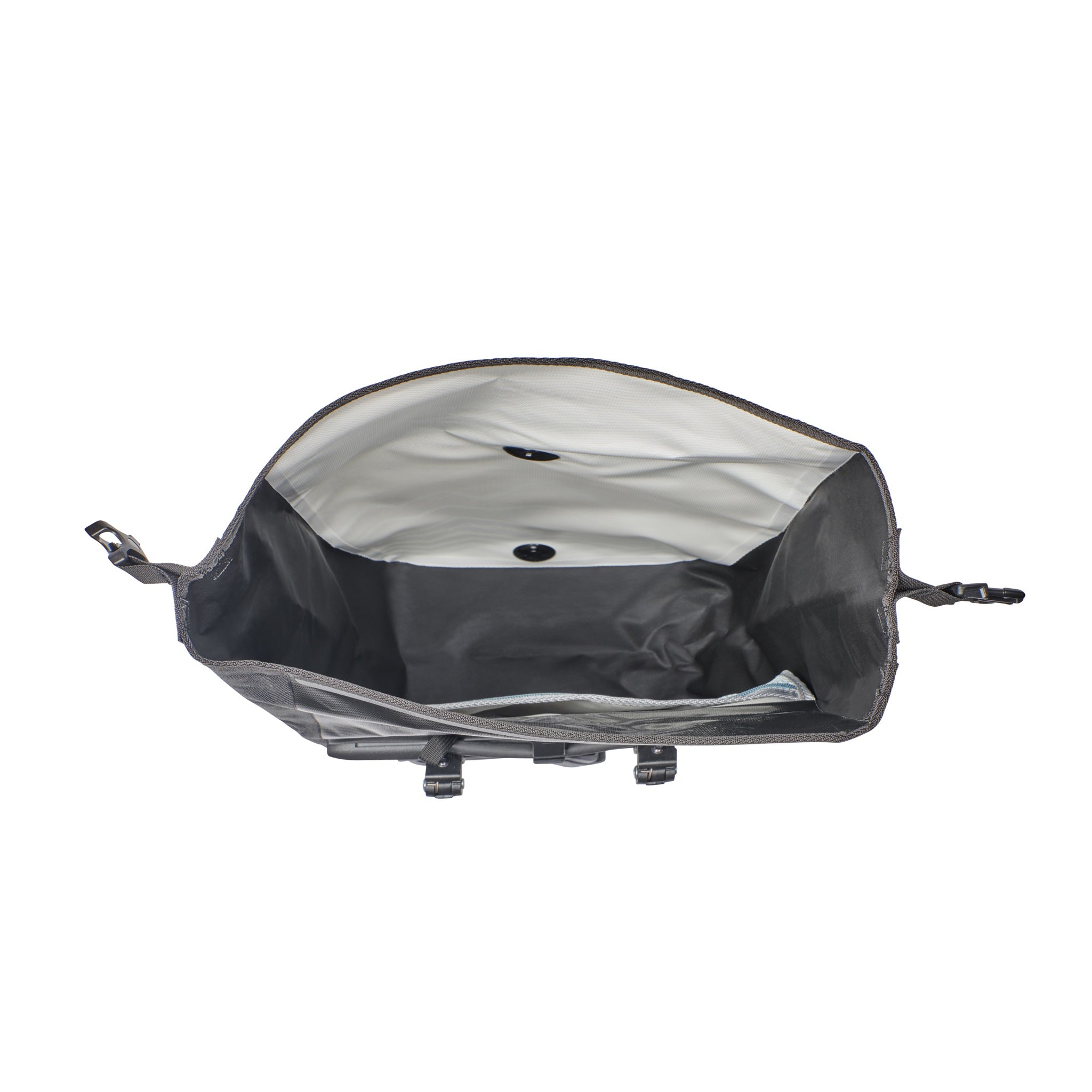

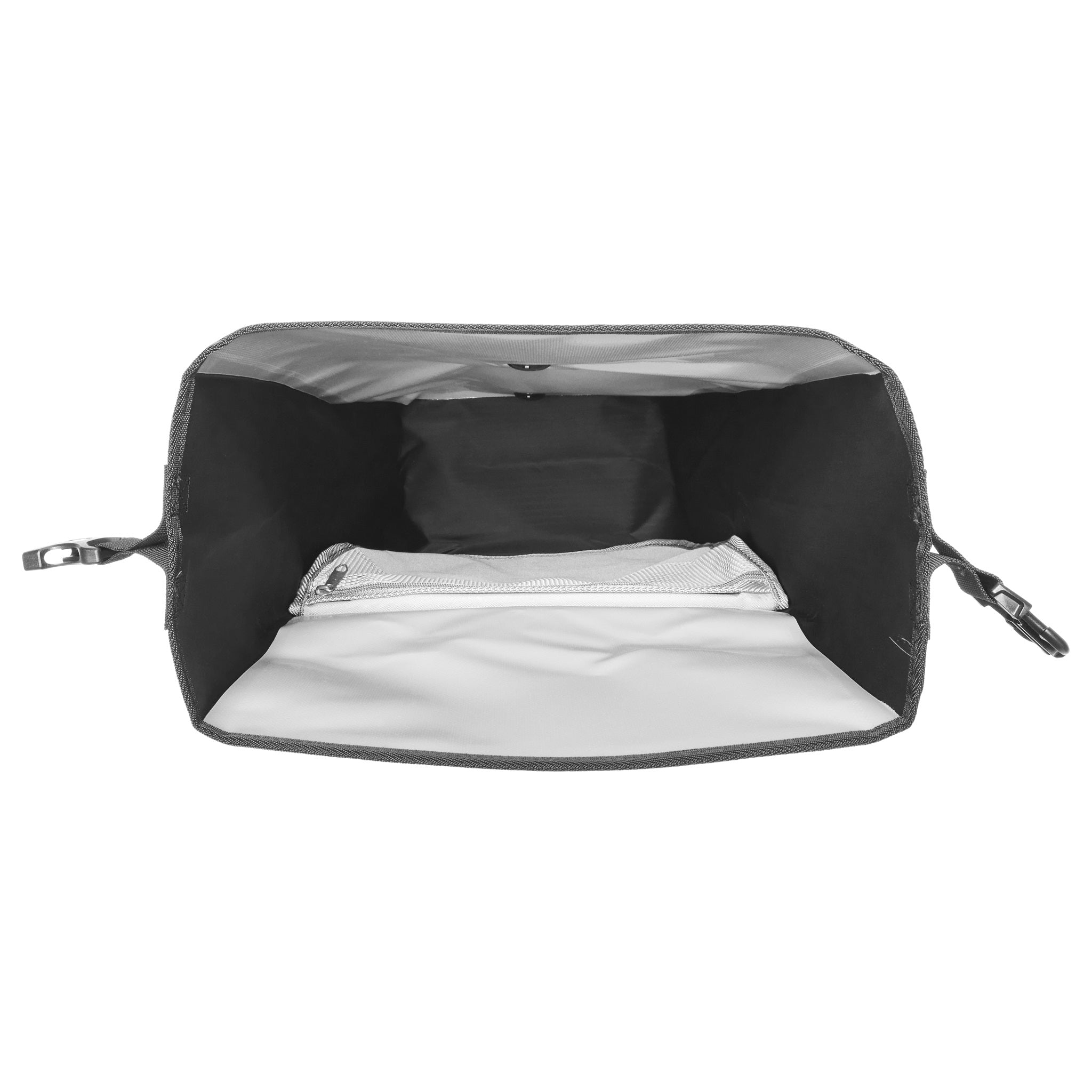

Inside the bag is a permanently attached inner bag consisting of a spacious main compartment and a practical mesh pocket with a zip. This allows you to keep your equipment and utensils organised. For extra organisation, you can combine the Back-Roller Design with the optional packing cubes, commuter inserts and toiletry bag.

When removed from the bicycle, the bag is easy to carry thanks to the practical carrying strap. And for those of you who have fallen in love with the beautiful design but need two rear wheel bags, we have good news: the Back-Roller Design can be easily combined with any single-colour Back-Roller.
Of course, the Back-Roller Design is also waterproof and repairable, and is manufactured in Heilsbronn.

Specifications

Height

42 cm

Width

32 cm

Depth

17 cm

Volume

20 L

Load

9 kg

Weight

950 g

SKU

F5531

Waterproof

Yes ()

IP Ratings

The IP rating is an international standard that indicates how well a product is protected against dust and water.

The Back-Roller Design meets the IP64 protection rating:

Even in very heavy rain and splashing water, the contents stay perfectly dry. The Back-Roller Design is therefore ideal for longer outdoor adventures in stormy conditions.

All protection ratings at a glance

IP67

The product is dust-tight and protected against temporary immersion (up to 1 m for 30 min.).

IP64

The product is dust-tight and protected against splashing water from all directions.

IP54

The product is dust-protected and protected against splashing water from all directions.

IP53

The product is dust-protected and protected against spraying water up to 60° from vertical.

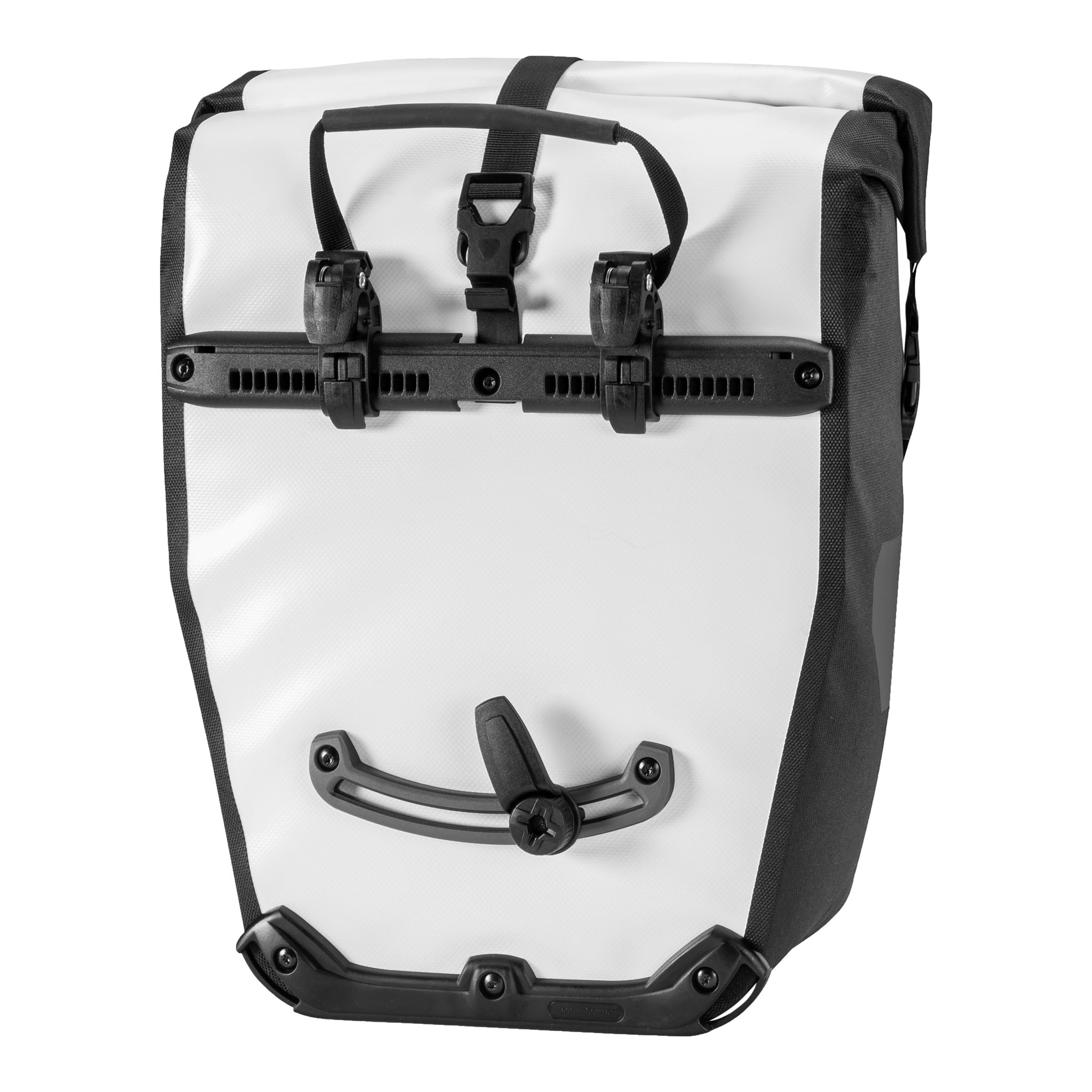

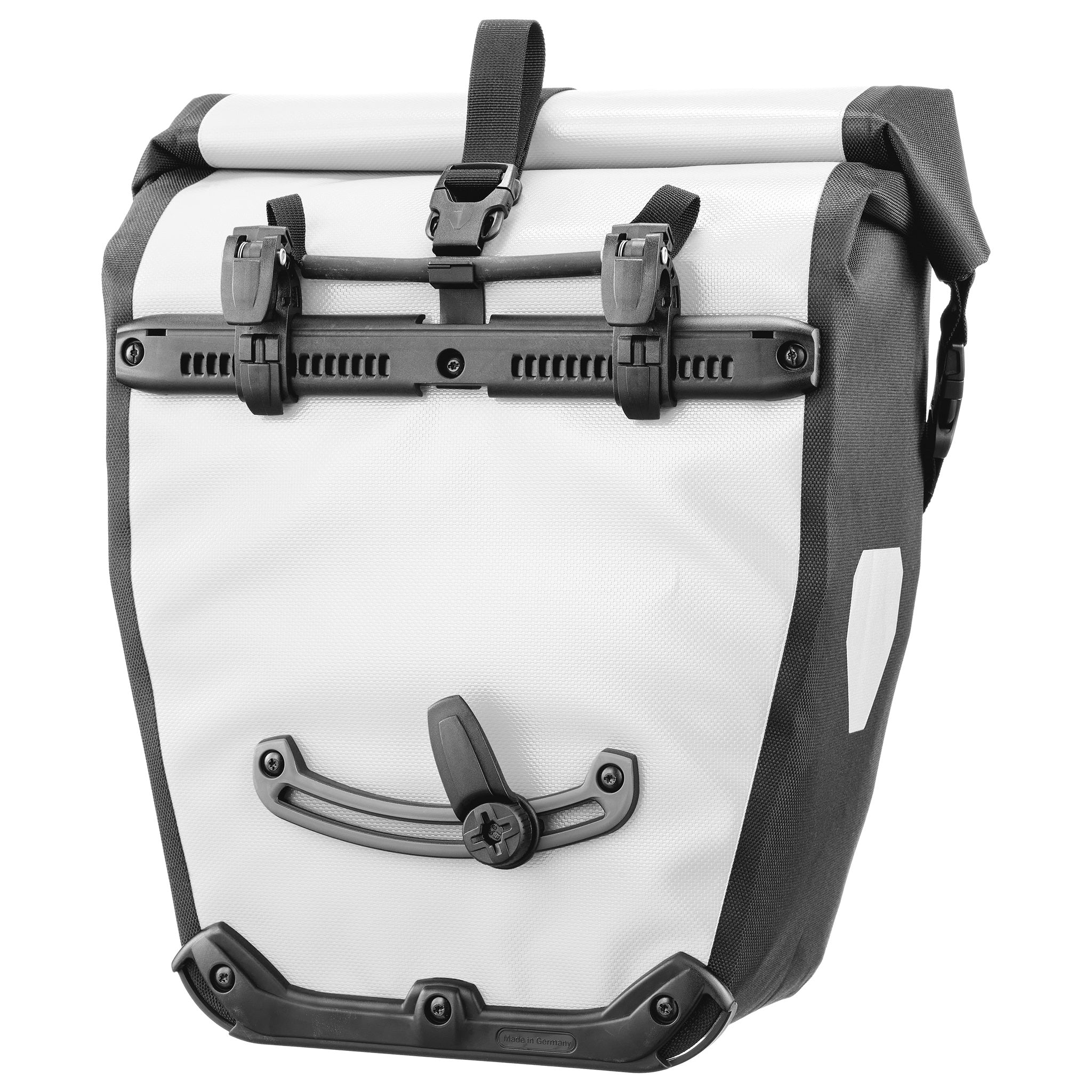

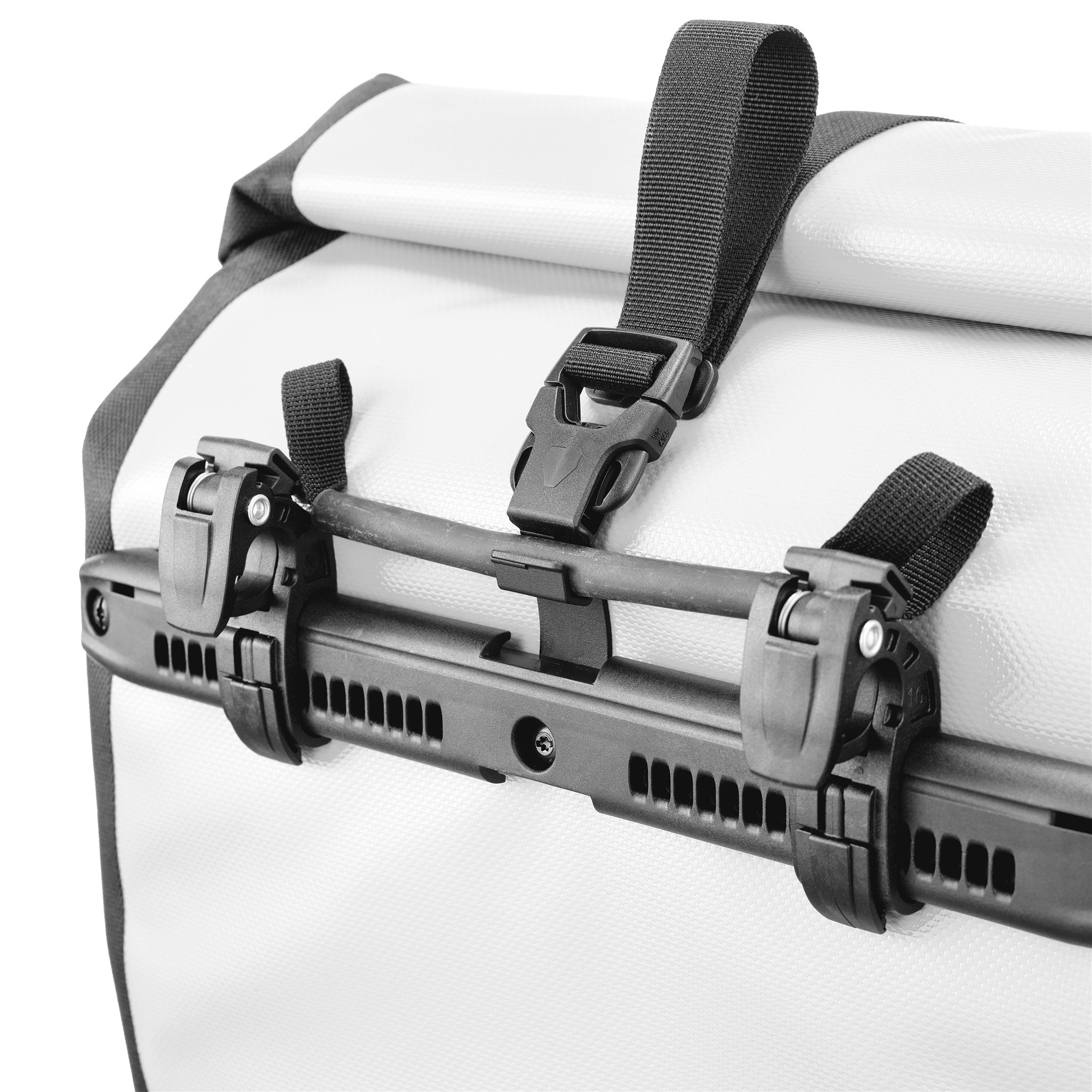

Mounting System

Quick-Lock2.1

Downloads

Instruction
Datasheet

Manufacturer information

ORTLIEB Sportartikel GmbH
Rainstraße 6
91560 Heilsbronn
Germany
deinservice@ortlieb.com

Our mounting systems in comparison

The QL mounting systems on ORTLIEB panniers allow fast and secure mounting on racks. They are referred to as self-locking fixing systems, for the panniers provided with this system can be mounted to the racks in an easy and safe manner. In case of damage all components can be replaced easily.

Quick-Lock2.2

Making good things even better – that was the goal in developing the Quick-Lock system, proven millions of times over. The result is Quick-Lock2.2, even easier to handle, more comfortable, and more robust.

Quick-Lock3.1

The QL3.1 system is especially developed for office and city bags an its secret lies in the fact that the main mounting components stay on the rack. This results in a smooth rear side of the bag that is free of protruding hooks, and significantly improves the bag’s carrying comfort when off the bike.

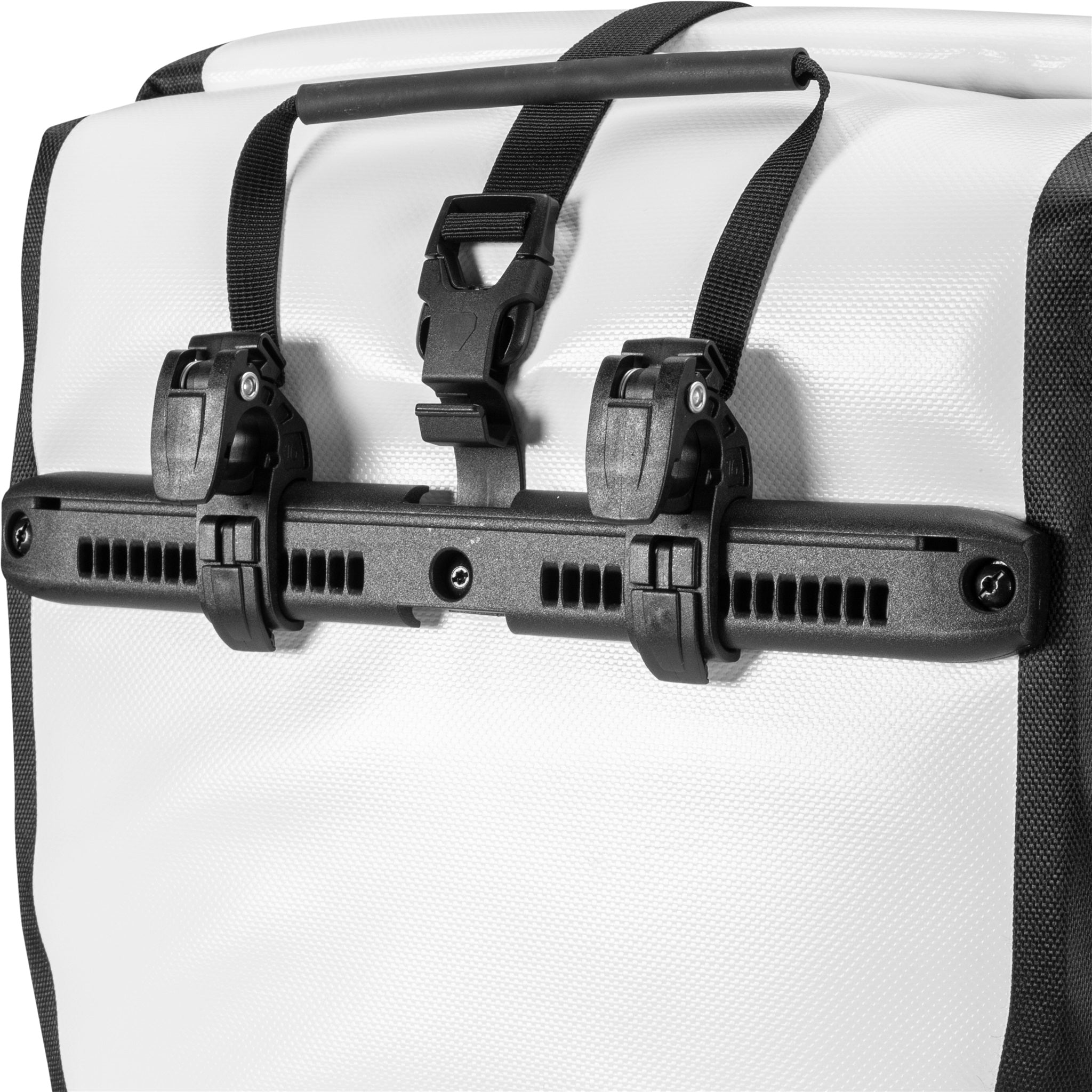

Quick-Lock2.1

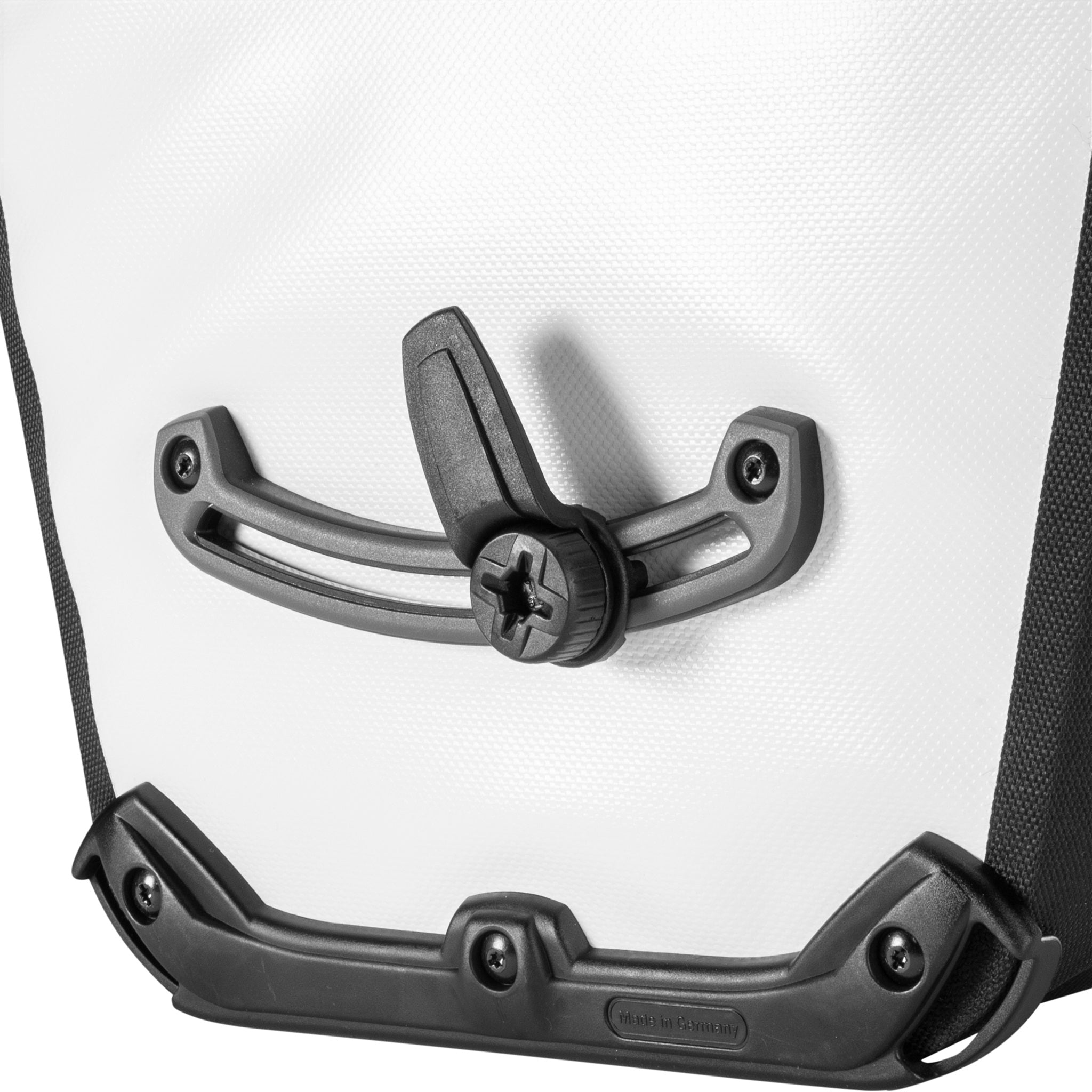

This mounting system for bike panniers is the further development of ORTLIEB’s milestone setting QL1 system. All hooks are adjustable to the rack without requiring any tools. Therefore, the panniers can be easily switched from one bike to another.

Max. load capacity

12.5 kg

Max. load capacity

9 kg

Max. load capacity

9 kg

Tube diameter

Stepless adjustable from 8 to 16 mm without reducers

Tube diameter

All QL3.1-compatible luggage racks; max. 14 mm when using the mounting kit and max. 16 mm with mounting clamps

Tube diameter

8, 10, 12, 16 mm with reducers, up to 20 mm with large hooks

Anti-Scratch

Upper hooks, lower hook, lower hook rail

Anti-Scratch

Not necessary

Anti-Scratch

Reducers, lower hook rail

Special feature

Tool-free and stepless adjustment without reducers

Special feature

Comfortable to wear and particularly lightweight, as there are no hooks on the back.

Special feature

Tool-free adjustment

View all QL2.2 products

View all QL3.1 products

View all QL2.1 products

Detailed overview of the mounting systems

Frequently Asked Questions

How do the different Back-Roller models differ?

All Back-Roller models are waterproof and extremely durable. The main differences are in the material, features, design, and volume. Many models are available individually or as a pair. The product image always shows the correct quantity, and a corresponding note can be found on the product page.

Models with the additions Plus, Plus CR, or Urban are made from a single-sided coated material. It is just as waterproof as the classic tarp material but looks more textile-like and elegant.
The Free models, like the Urban and Plus variants, are completely PVC-free while still retaining the typical feel of the tarp material.
For the Back-Roller Plus and Back-Roller Plus Urban, the “Plus” refers to the additional outer pocket. Both bags have a textile appearance.
The XL models offer 35 liters of storage space per bag and are particularly suitable for long tours or for anyone who likes to carry more luggage.
The Back-Roller Core is the entry-level model. It focuses on the essentials, is waterproof and robust, and does not include a shoulder strap or an inner pocket.

Most models feature the popular Quick-Lock2.1 mounting system. Some variants use alternative systems, which you can compare on our Quick-Lock overview page.

To Quick-Lock overview

What is the difference between Back-Roller and Sport-Roller?

Both models are waterproof, robust and equipped with the Quick-Lock system.
The Back-Roller is designed for the rear luggage rack and offers plenty of storage space with 20 liters per bag for longer tours or everyday use.
The Sport-Roller is more compact, holds 14.5 liters and is ideal as a front bag on a lowrider or for smaller bicycles.

How is the the Back-Roller Design mounted on the luggage rack?

With ORTLIEB’s Quick-Lock mounting systems, you can easily attach the bag to the luggage rack with one hand. Removing it is just as easy. You’ll find the exact mechanism for each Quick-Lock system on our overview page.

To Quick-Lock overview

Is the Back-Roller Design waterproof?

The Back-Roller Design is waterproof according to protection class IP64. This rating indicates:

The product is dust-tight and protected against splashing water from all directions. Even in very heavy rain and splashing water, the contents stay perfectly dry. The Back-Roller Design is therefore ideal for longer outdoor adventures in stormy conditions.

More about waterproofness

Does the Back-Roller Design fit my luggage rack?

ORTLIEB bags with the Quick-Lock mounting system are compatible with almost all luggage racks. The Quick-Lock2.1 and Quick-Lock2.2 systems fit racks with tube diameters from 8 mm to 16 mm. Bags with Quick-Lock3.1 require special attachment points on the luggage rack, which can easily be retrofitted using a mounting kit if necessary.

To the QL3.1 mounting kit

Where is the Back-Roller Design manufactured?

The Back-Roller Design is manufactured in Heilsbronn, Germany, standing for genuine “Made in Germany” quality. Every production step, from material cutting to final inspection, takes place in our own facilities. Materials are sourced locally, regionally, or internationally according to strict requirements. Our high standards for raw materials extend the product’s lifespan and conserve resources.

More about Made in Germany

Is the Back-Roller Design worth the price?

ORTLIEB products stand for durability and repairability. The Back-Roller Design is manufactured in our factory in Heilsbronn, Germany. We source materials locally, regionally, or internationally depending on what meets our high standards. We invest time in development to ensure the functionality of every detail.

Thanks to long-lasting materials, the bag is a reliable companion. Its lifespan puts the purchase price into perspective, especially since we offer a five-year warranty on our products. A wide range of repair and upgrade options further improves the price-performance ratio.

Repair before replacement: Every product is designed to be easy to repair and can, in most cases, be serviced by our Customer Service team in Heilsbronn. This extends its lifespan and conserves resources.
