Thru Axle M6-Connector

Adapter thru axle with integrated M6 threads for versatile mounting options.

Thread Pitch

1 mm 1.5 mm 1.75 mm

SKU: F78112

In stock – Delivery time: 2-3 business days

5 year

5-Year Warranty

ORTLIEB-Warranty

The ORTLIEB warranty, limited to five years, is a voluntary warranty provided by the manufacturer. It grants additional rights independent of the rights granted by consumer protection laws. Should a product be replaced within the warranty period, the date of first delivery continues to apply to the five-year warranty period.

This worldwide, free of charge warranty of five years from delivery refers to material defects and processing errors. Scuff marks, holes and cracks caused by the customer's own fault are not covered by the warranty. Claims for defects due to normal wear and tear, improper use, non-observance of the assembly instructions, third-party intervention as well as due to improper storage are excluded. No warranty is given for damage due to improper care and improper use. As a rule, however, such damage can be repaired at cost price.

Consumer Protection Law

Important: The provisions of the ORTLIEB warranty, which is limited to five years, do not apply to claims arising from statutory consumer protection rights. These statutory rights are not limited by the warranty. Thus, the benefits under the five-year limited ORTLIEB warranty are intended to supplement and not replace the rights granted by consumer protection laws.

If a product is defective, consumers may in particular claim the rights under §§ 434 et seq., §§ 474 et seq. of the German BGB (German Civil Code). Consumers can choose whether to claim performance under the ORTLIEB warranty, which is limited to five years, or under their statutory consumer protection rights.

The first point of contact for warranty claims is always the specialist or online dealer with whom the purchase contract for the product was concluded. This warranty is subject to the laws of the Federal Republic of Germany.

Status: July 2022

Plus $20.00 AUD costs

$69.95

Tax included.

Thru Axle M6-Connector

$69.95

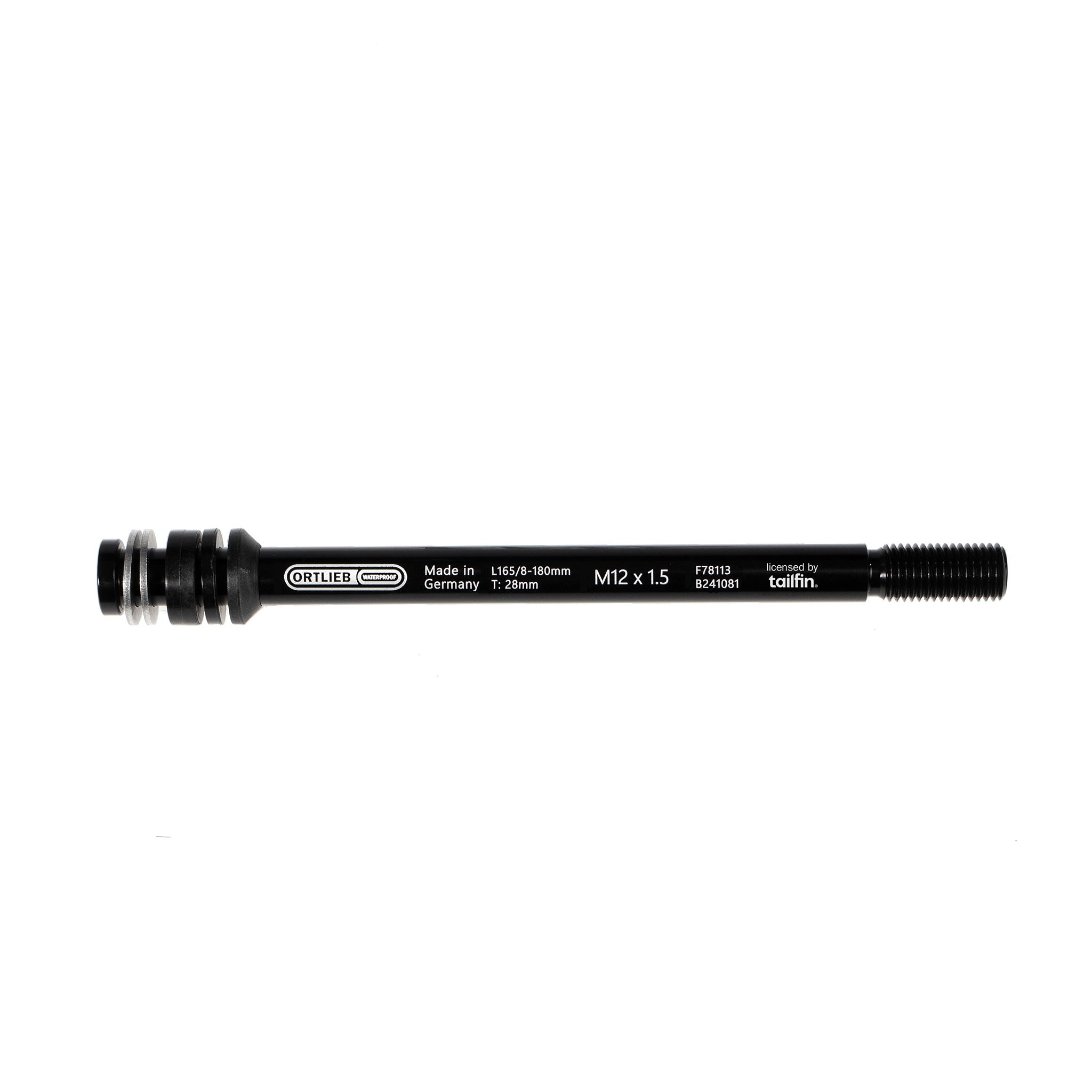

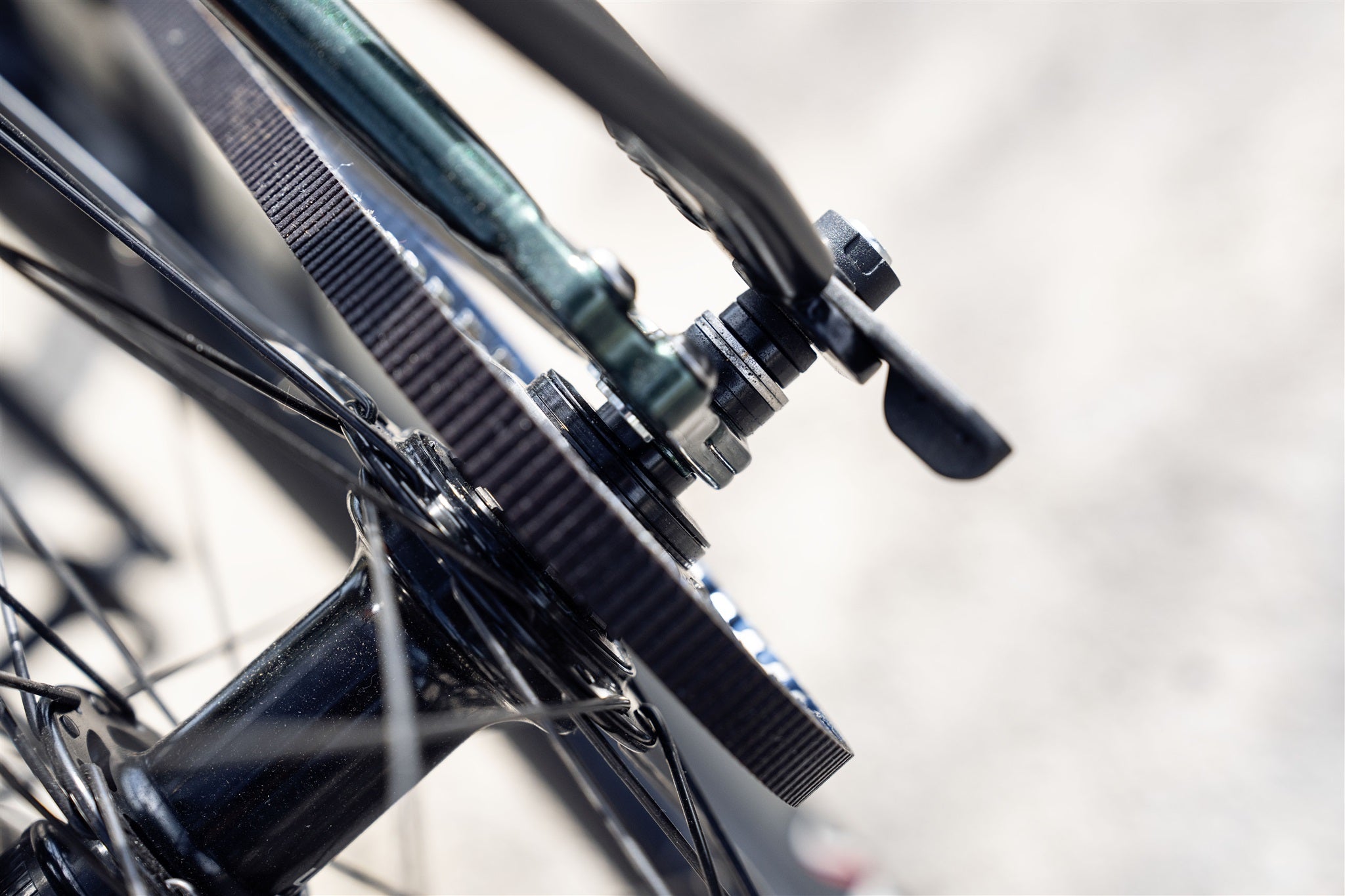

The Thru Axle M6-Connector is a universal adapter thru axle designed for the secure mounting of racks. Crafted from high-quality aluminum with integrated M6 threads, it offers exceptional versatility and durability.

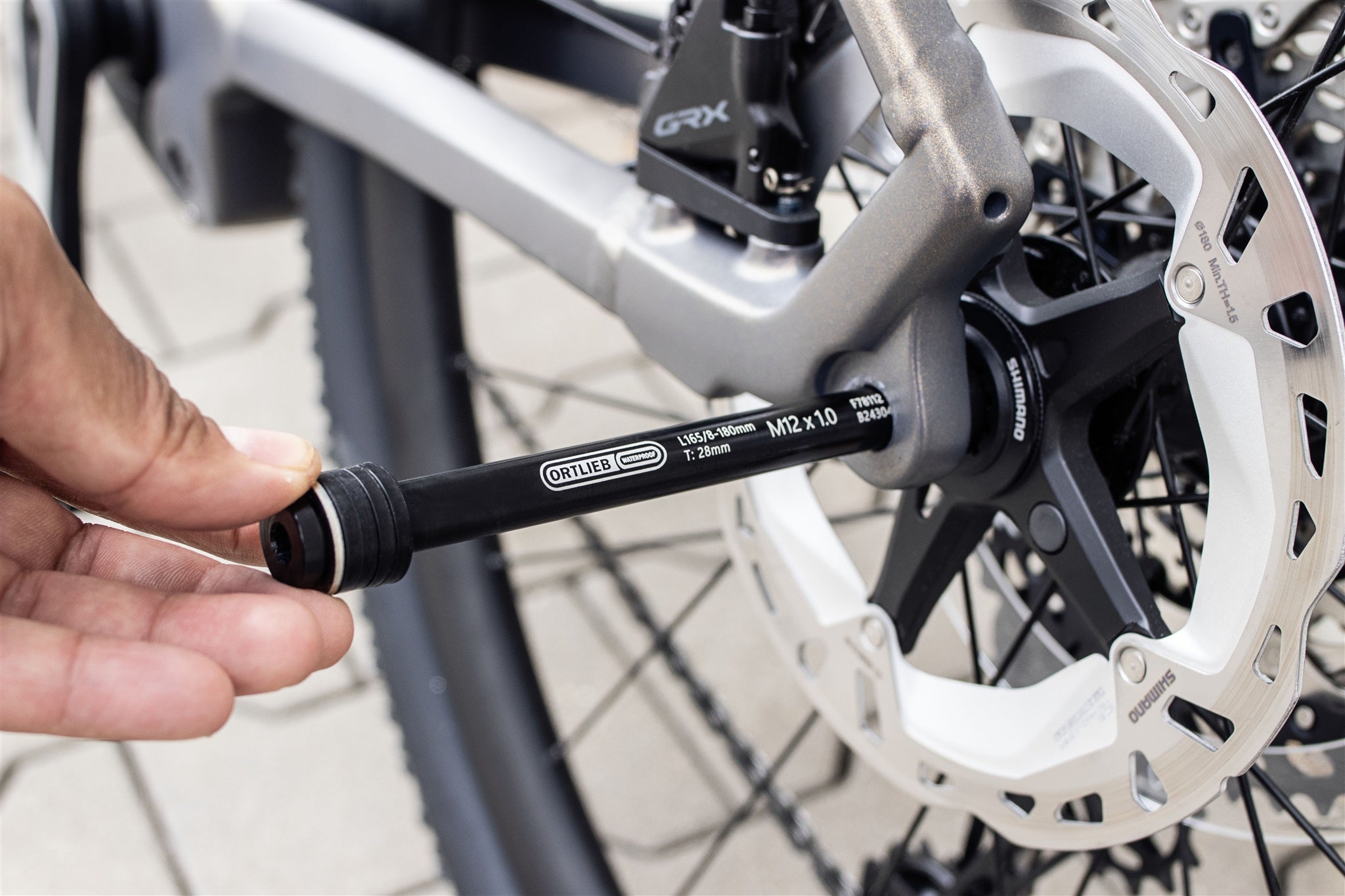

This adapter thru axle replaces axles up to 180 mm in length and can be adjusted to fit axle lengths between 165 mm (tapered) and 168 mm to 180 mm using the included spacers. It is also compatible with shorter axle lengths, provided the axle can be screwed through the frame.
Available in three thread pitches and fully compatible with SRAM UDH/Transmission, this thru axle is the ideal solution for demanding applications, ensuring a secure and reliable fit.

Specifications

Width

18 cm

Weight

54 g

SKU

F78112

Material

Aluminium

Downloads

Instruction
Datasheet

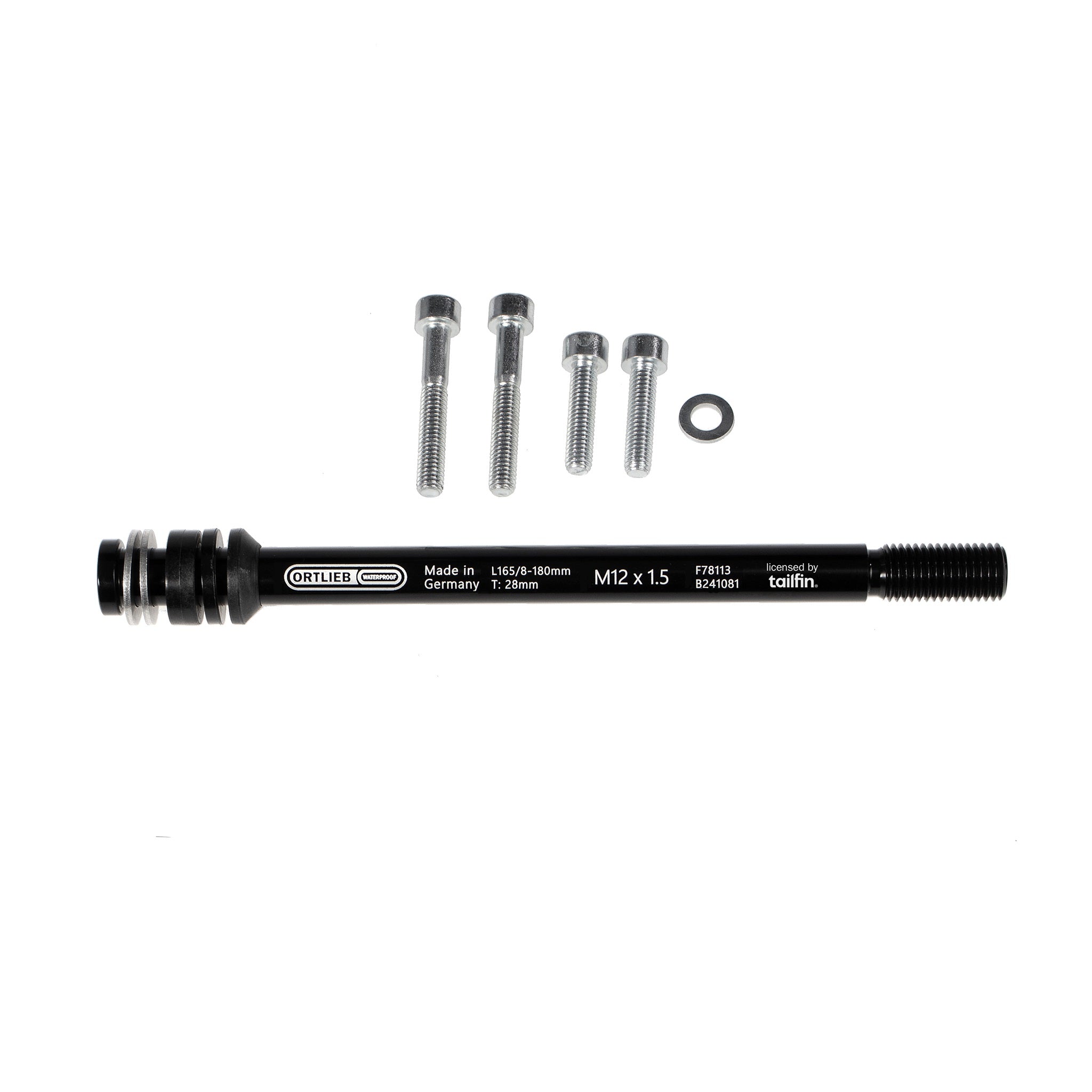

Scope of delivery

1x adapter thru axle with spacer
2x M6x40 screw
2x M6x25 screw
3x M6 washer

Warnings and safety information

Risk of injury due to loose components on the product. Screws can loosen over time due to vibrations. Therefore, check the screws after 10 km, 50 km, 100 km and 200 km and retighten if necessary.
Risk of injury due to material breakage if overloaded! Do not exceed the maximum payload of 26 kg in total. If necessary, weigh your load to ensure that you do not exceed the maximum payload.

Manufacturer information

ORTLIEB Sportartikel GmbH
Rainstraße 6
91560 Heilsbronn
Germany
deinservice@ortlieb.com

Frequently Asked Questions

Is the ORTLIEB Thru Axle M6-Connector compatible with my bike?

The Thru Axle adapter is compatible with all bicycles that have an open M12 thread or a SRAM UDH/Transmission system. Please check the correct thread pitch of your original axle. Further details can be found in the manual.
The Thru Axle is not suitable for bikes with Speed Release threads (double-start threads), such as the ORBEA Terra from model year 2022 or models from BMC and BH.

Can I use it with my existing luggage rack?

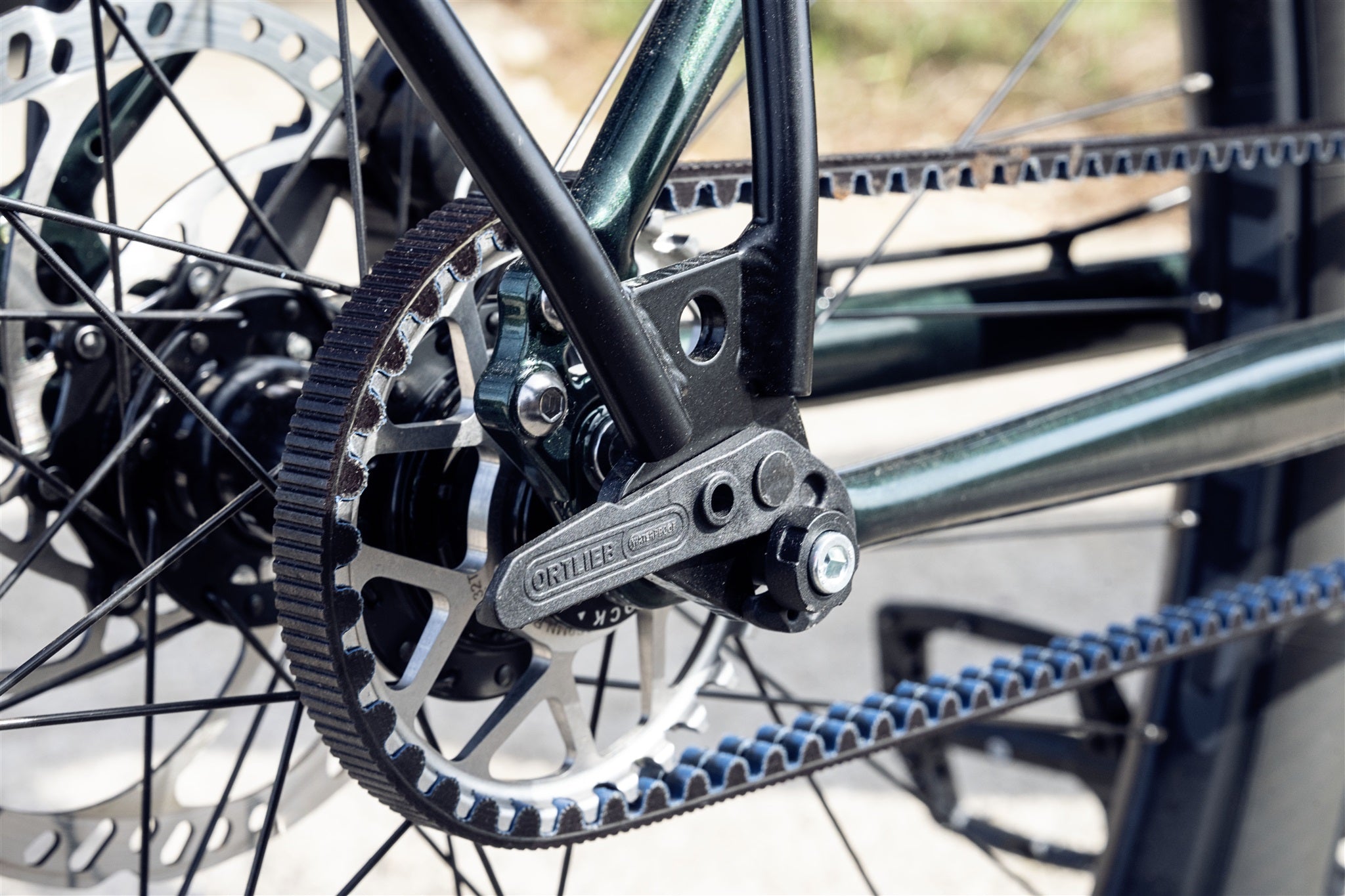

Yes, the axle allows secure mounting of many luggage racks with M6 mounts, such as the ORTLIEB Quick Rack or other bolt-on systems with 6 mm eyelets. Ensure a minimum distance of 184 mm between the mounting points and observe your rack’s installation instructions.

Is the Thru Axle suitable for carbon frames?

Yes, the Thru Axle provides a stable and secure way to mount a rack, especially on carbon frames.

How tight should the Thru Axle be?

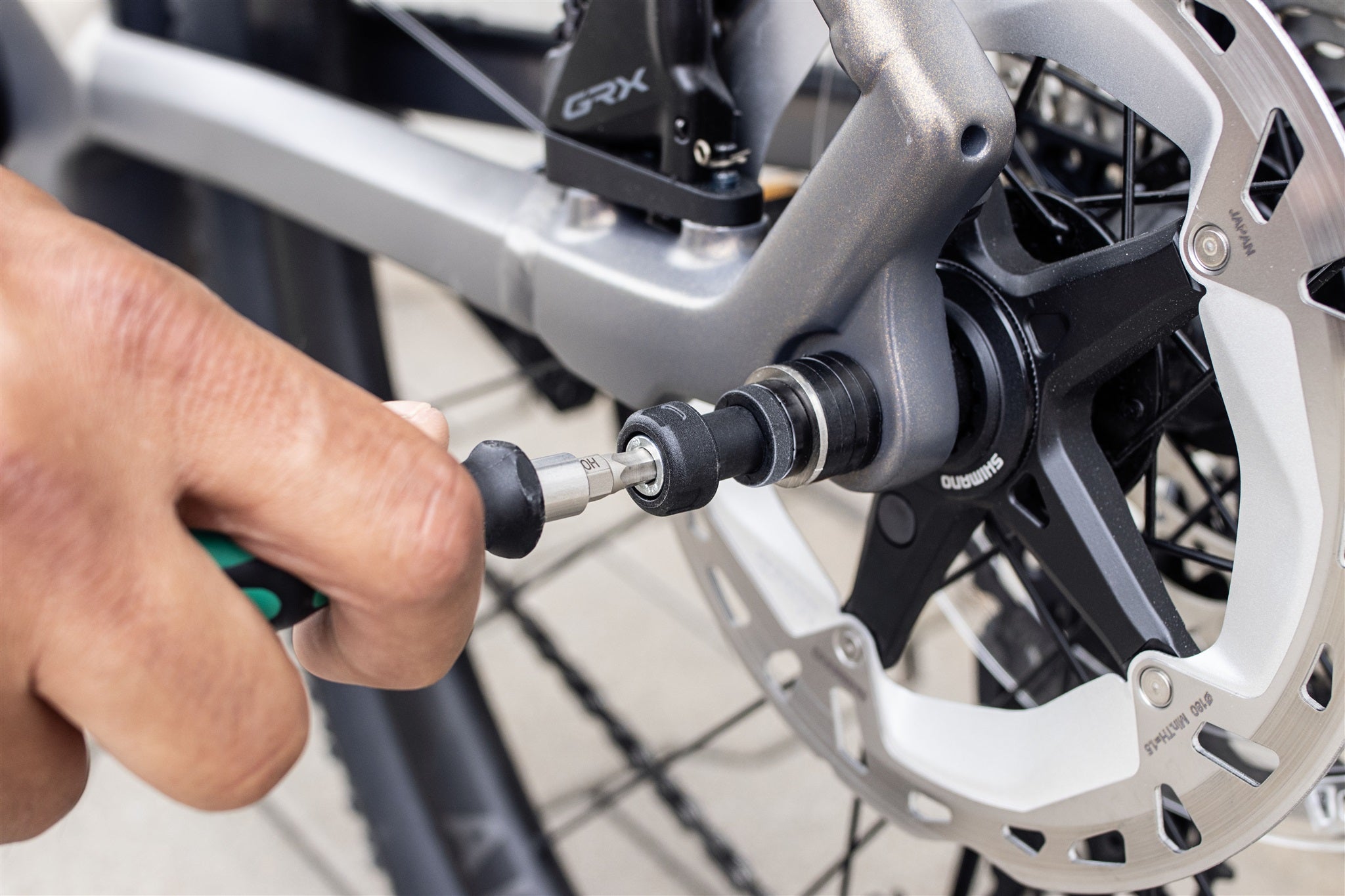

Tighten the axle with the torque recommended by the bike manufacturer. Typically, this value is around 10-12 Nm, but it may vary depending on the frame. Make sure to lightly grease the thread.

Where is the Thru Axle M6-Connector manufactured?

The Thru Axle M6-Connector is manufactured in Heilsbronn, Germany, standing for genuine “Made in Germany” quality. Every production step, from material cutting to final inspection, takes place in our own facilities. Materials are sourced locally, regionally, or internationally according to strict requirements. Our high standards for raw materials extend the product’s lifespan and conserve resources.

More about Made in Germany

How long is my warranty?

The Thru Axle M6-Connector is designed for longevity and often accompanies you for decades. To give you peace of mind regarding durability, we offer a five-year warranty on materials and workmanship. If the Thru Axle M6-Connector does get damaged, almost every component from straps to buckles can be repaired. Even if a model is no longer produced, spare parts remain available for at least ten years.
