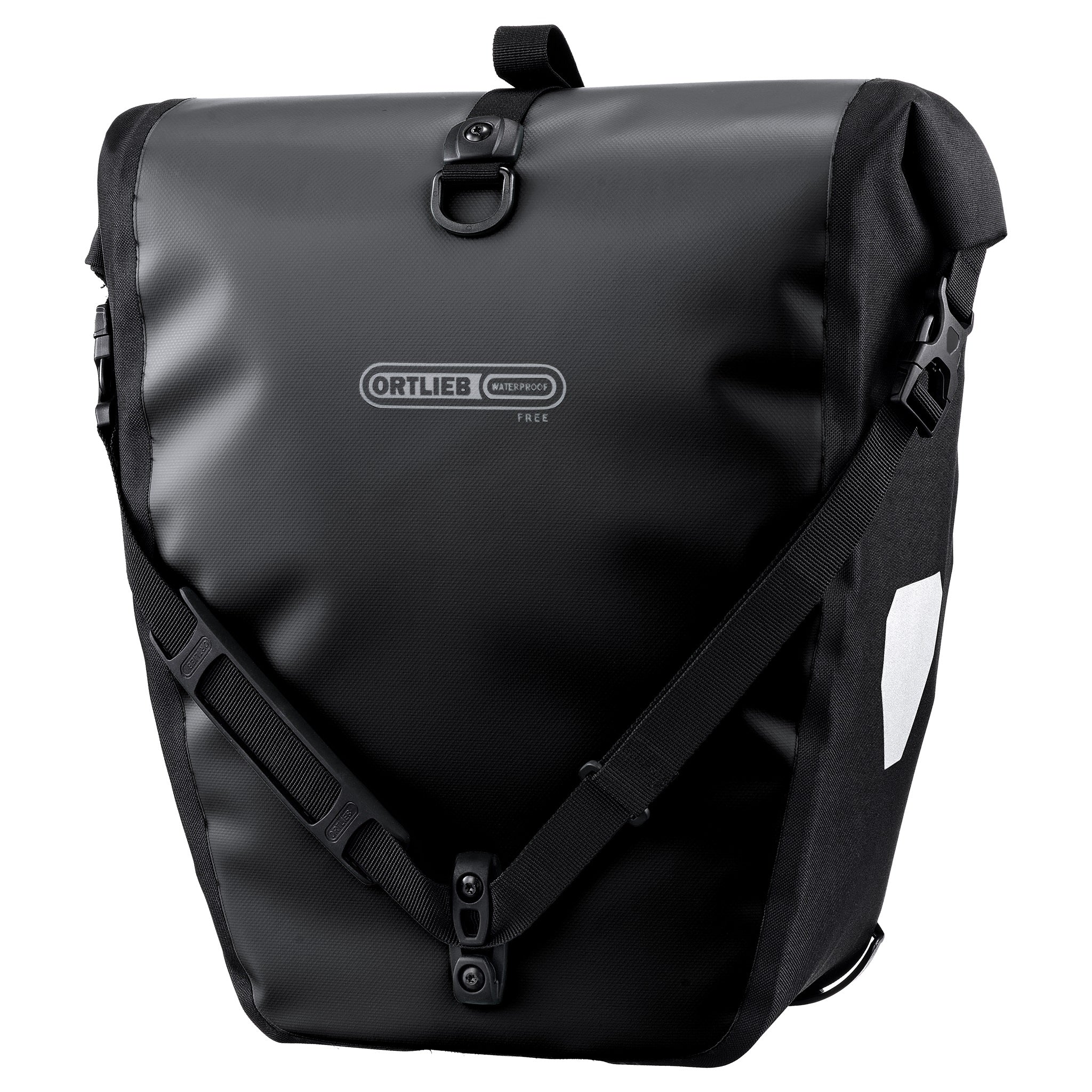

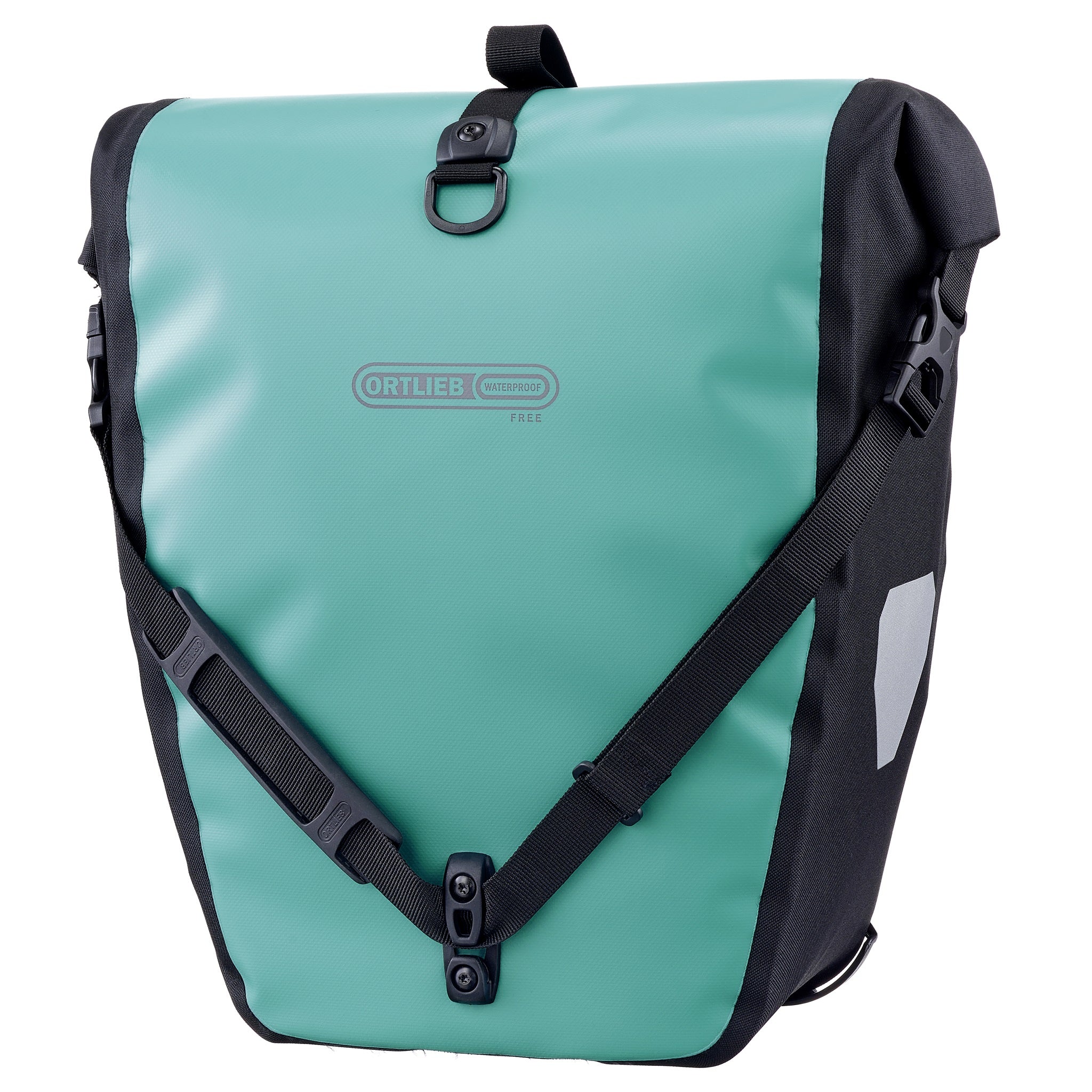

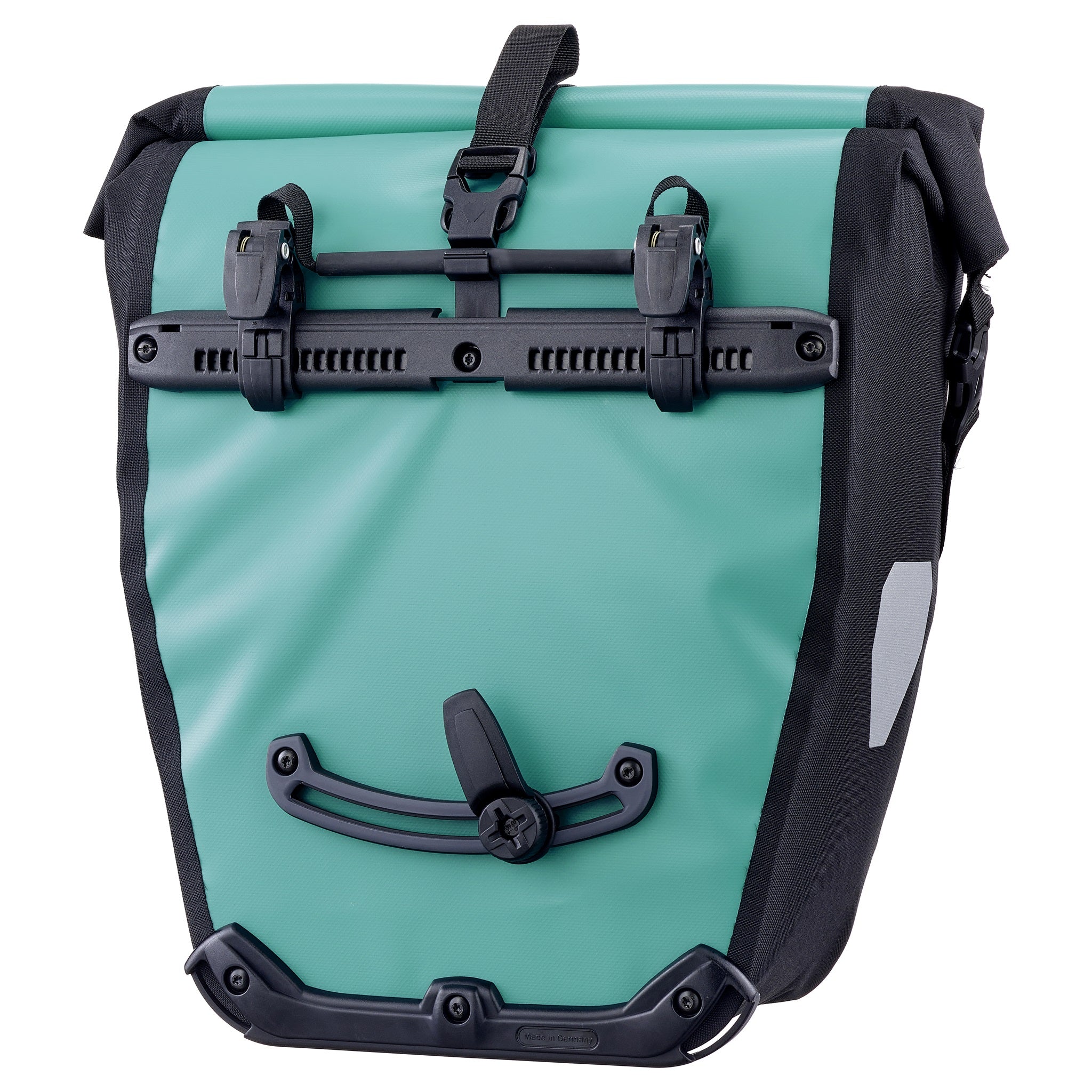

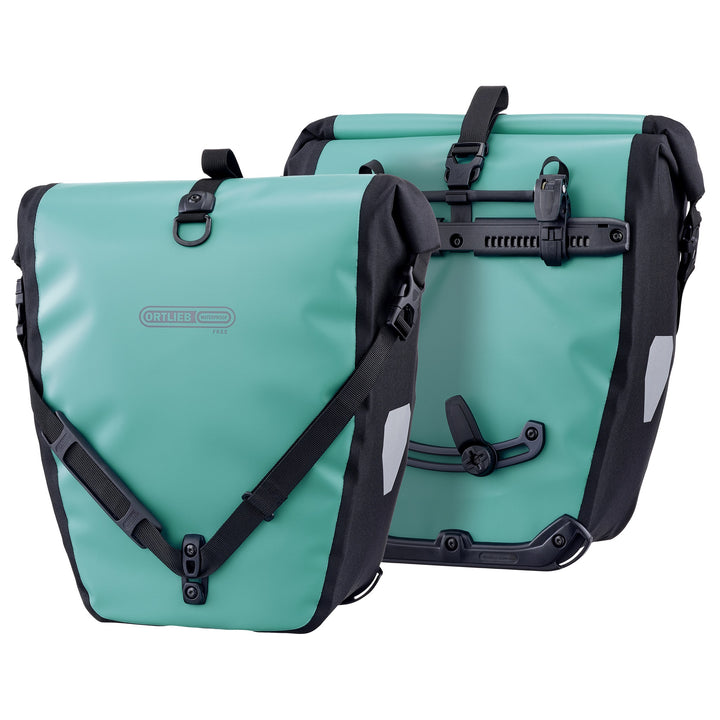

Back-Roller Free

Pair of bags

In keeping with its commitment to innovation, ORTLIEB has just introduced another PVC-free line of products made of a polyurethane-coated polyester fabric. The base fabric of the products in the Free Line is coated with polyurethane in a manner that ensures lasting waterproof qualities.

Color: lagoon - black

In stock Delivery time: 2-3 business days

SKU: F5104

$299.95

Tax included. Free .

Back-Roller Free

$299.95

In keeping with its commitment to innovation, ORTLIEB has just introduced another PVC-free line of products made of a polyurethane-coated polyester fabric. The base fabric of the products in the Free Line is coated with polyurethane in a manner that ensures lasting waterproof qualities. The result is a waterproof and durable canvas material that is as outstanding as the conventional ORTLIEB canvas material when it comes to durability and service life. The products in the Free Line are available in classic black and two other appealing colors.The PVC-free version of the proven ORTLIEB Back-Roller was developed for cyclists and outdoor enthusiasts who would like to avoid PVC entirely. This rear pannier bag with a roll closure offers ultimate practicality for all of your bike tours and weekly grocery-shopping ventures, especially on account of its generous payload. Thanks to its waterproof exterior, easy-to-clean interior and shoulder-bag function, the Back-Roller Free is ideal for all who would like to use their bikes despite having things to carry. With the Quick-Lock2.1 system, the bags attach to any bike rack with a tube diameter of up to 16 mm. Larger hooks (e.g. for e-bikes) are available separately.

Specifications

Per bag Height: 42 cm
Width: 32 cm
Depth: 17 cm
Volume: 20 L
Load: 9 kg
Weight: 925 g

Waterproof: Yes ()

IP Ratings

The IP rating is an international standard that indicates how well a product is protected against dust and water.

The Back-Roller Free meets the IP64 protection rating:

Even in very heavy rain and splashing water, the contents stay perfectly dry. The Back-Roller Free is therefore ideal for longer outdoor adventures in stormy conditions.

All protection ratings at a glance

IP67

The product is dust-tight and protected against temporary immersion (up to 1 m for 30 min.).

IP64

The product is dust-tight and protected against splashing water from all directions.

IP54

The product is dust-protected and protected against splashing water from all directions.

IP53

The product is dust-protected and protected against spraying water up to 60° from vertical.

Material: PU-coated Nylon (PD62), PU-coated polyester (PS60)

Downloads

Instruction
Datasheet

Scope of delivery

2x pannier with QL2.1 mounting system
2x shoulder strap
2x set of reduction inserts (8 mm, 10 mm, and 12 mm; one pair each)

Spare parts

Shoulder strap (85 cm)

Repair kit -Stealth- side-release buckle

Bike-rack abrasion guards

Repair kit for -Stealth- side-release buckles

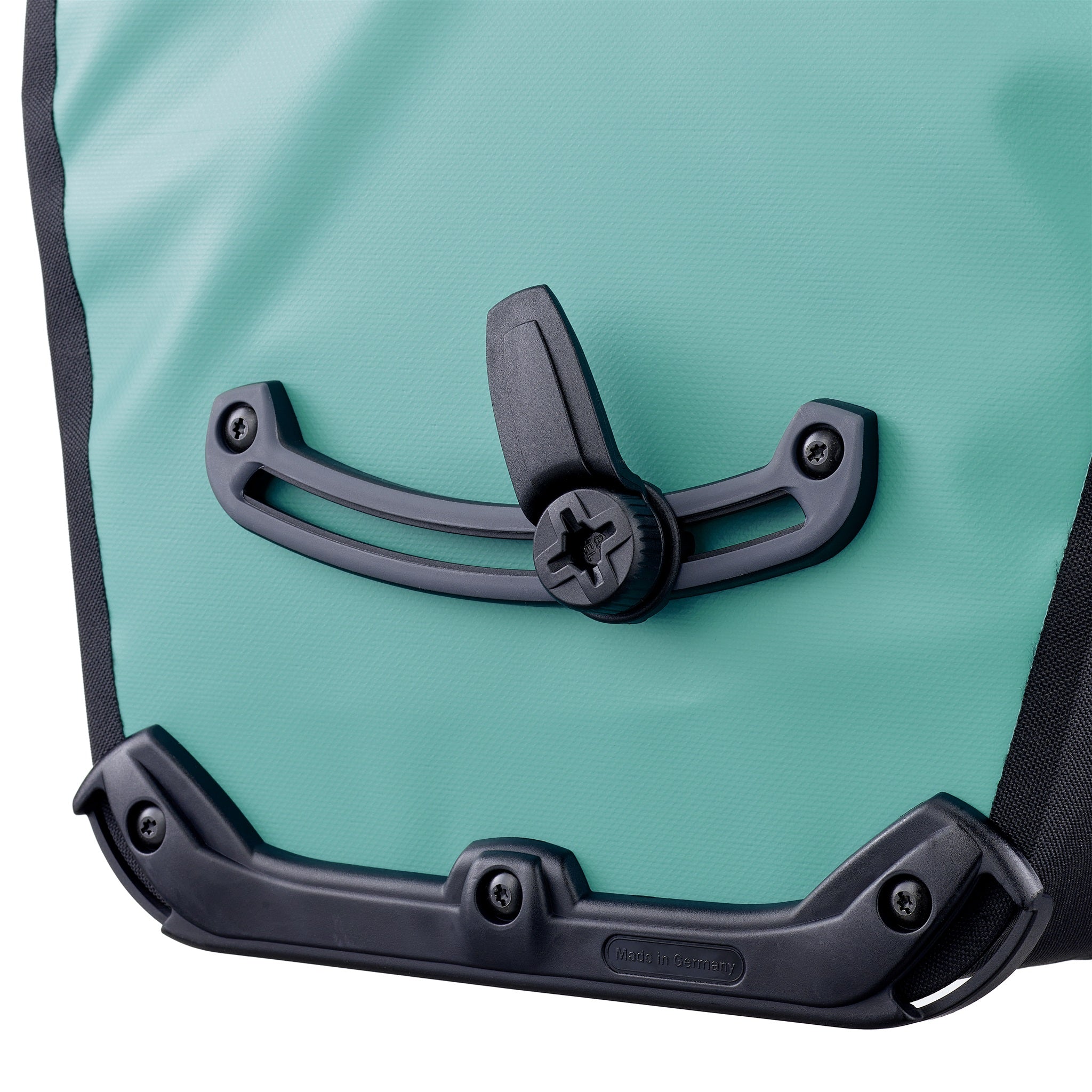

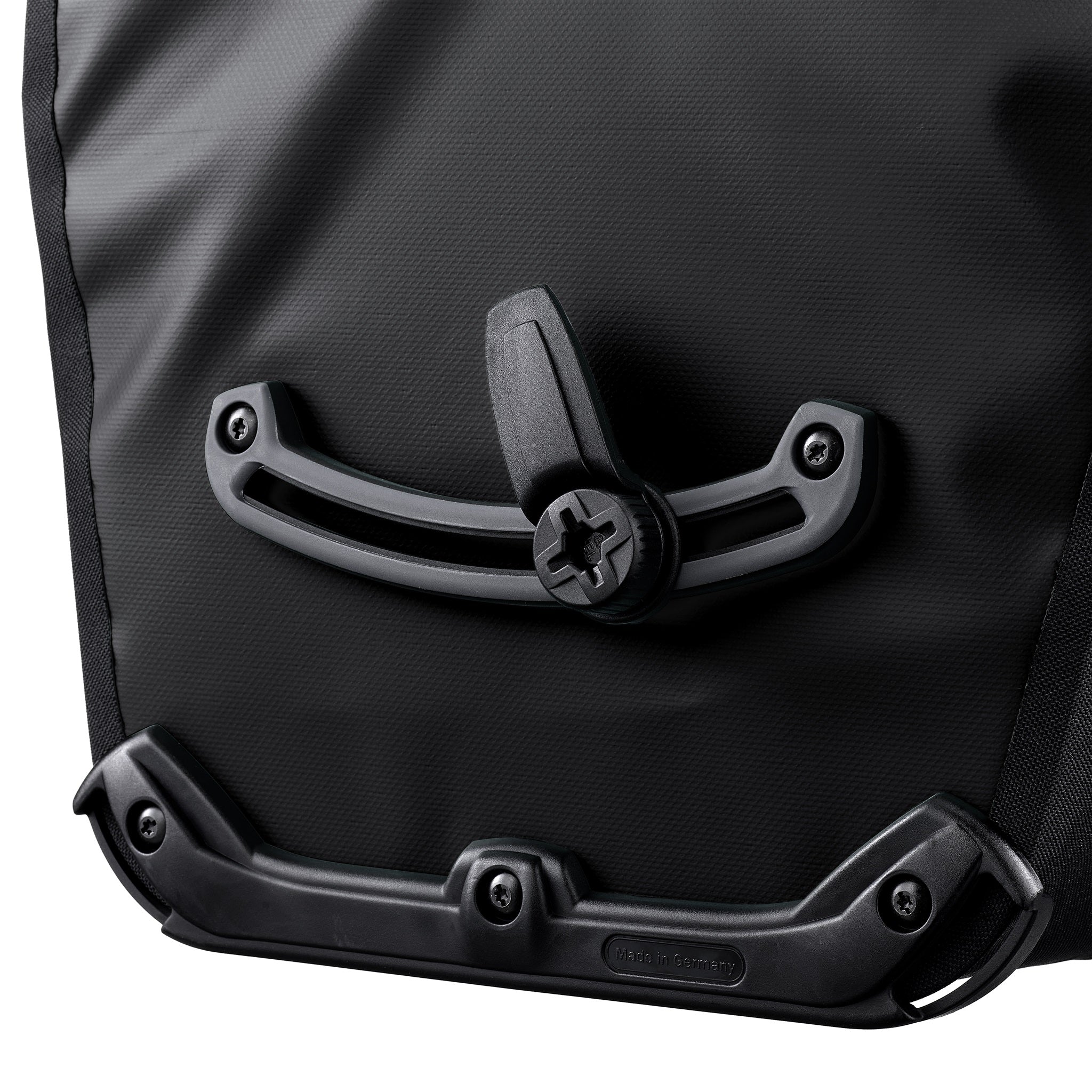

QL2.1 Mounting Hooks

Semi-elliptical bracket for lower QL2.1 anchoring hook

Screw set

Stealth auxiliary closure strap QL2.1, black

X-Stealth side-release buckle

Long QL2.1-rail with screws, without hooks

X-Stealth 25 mm (auxiliary closure strap)

Edge protection QL2.1

QL2.2 Hooks

QL1/ 2/ 2.1/ 2.2 Anchoring Hook

Warnings and safety information

Risk of injury due to incorrectly attached products! Before riding, check that the product is securely fastened.
Risk of injury due to loose components on the product. Screws can loosen over time due to vibrations. Therefore, check the screws after 100 km, 500 km, 1000 km and 1500 km and retighten them if necessary.
Risk of injury due to material breakage if overloaded! Do not exceed the maximum payload of 9 kg. If necessary, weigh your load to ensure that you do not exceed the maximum payload.
Risk of injury due to loose risers! Pull the carrying straps tight before each journey or stow them safely.

Manufacturer information

ORTLIEB Sportartikel GmbH
Rainstraße 6
91560 Heilsbronn
Germany
deinservice@ortlieb.com

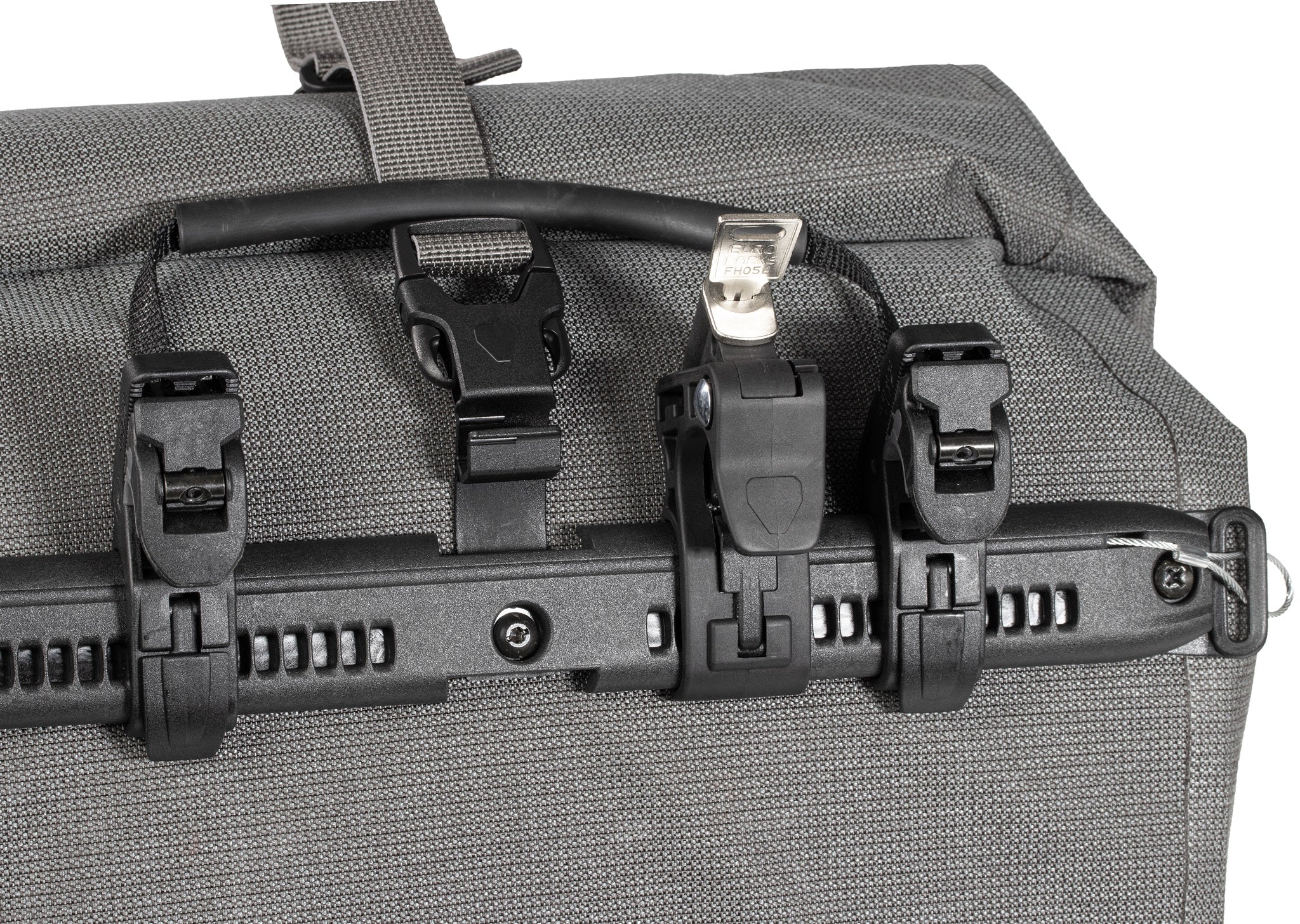

Our mounting systems in comparison

The QL mounting systems on ORTLIEB panniers allow fast and secure mounting on racks. They are referred to as self-locking fixing systems, for the panniers provided with this system can be mounted to the racks in an easy and safe manner. In case of damage all components can be replaced easily.

Quick-Lock2.2

Making good things even better – that was the goal in developing the Quick-Lock system, proven millions of times over. The result is Quick-Lock2.2, even easier to handle, more comfortable, and more robust.

Quick-Lock3.1

The QL3.1 system is especially developed for office and city bags an its secret lies in the fact that the main mounting components stay on the rack. This results in a smooth rear side of the bag that is free of protruding hooks, and significantly improves the bag’s carrying comfort when off the bike.

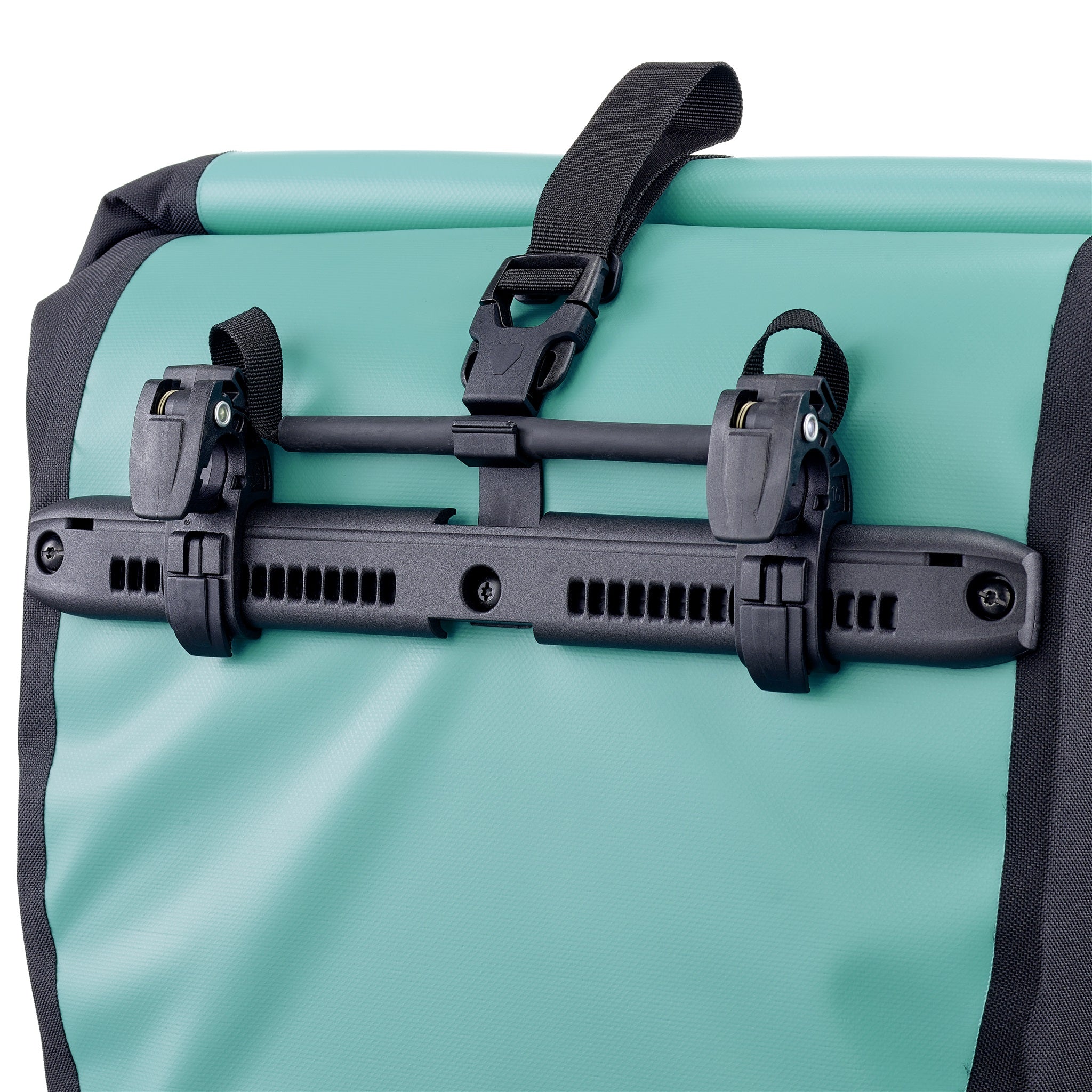

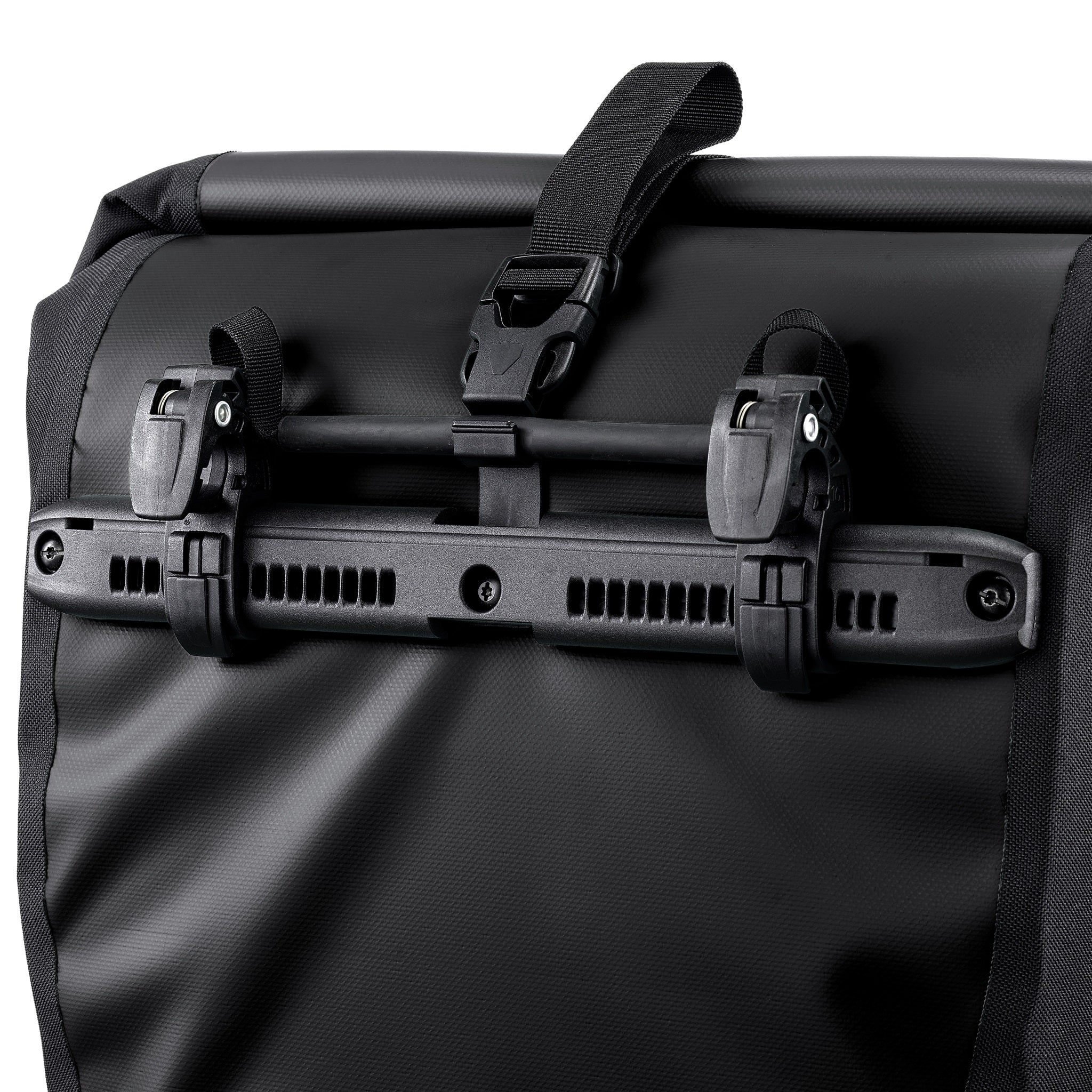

Quick-Lock2.1

This mounting system for bike panniers is the further development of ORTLIEB’s milestone setting QL1 system. All hooks are adjustable to the rack without requiring any tools. Therefore, the panniers can be easily switched from one bike to another.

Max. load capacity

12.5 kg

Max. load capacity

9 kg

Max. load capacity

9 kg

Tube diameter

Stepless adjustable from 8 to 16 mm without reducers

Tube diameter

All QL3.1-compatible luggage racks; max. 14 mm when using the mounting kit and max. 16 mm with mounting clamps

Tube diameter

8, 10, 12, 16 mm with reducers, up to 20 mm with large hooks

Anti-Scratch

Upper hooks, lower hook, lower hook rail

Anti-Scratch

Not necessary

Anti-Scratch

Reducers, lower hook rail

Special feature

Tool-free and stepless adjustment without reducers

Special feature

Comfortable to wear and particularly lightweight, as there are no hooks on the back.

Special feature

Tool-free adjustment

View all QL2.2 products

View all QL3.1 products

View all QL2.1 products

Detailed overview of the mounting systems

Frequently Asked Questions

How do the different Back-Roller models differ?

All Back-Roller models are waterproof and extremely durable. The main differences are in the material, features, design, and volume. Many models are available individually or as a pair. The product image always shows the correct quantity, and a corresponding note can be found on the product page.

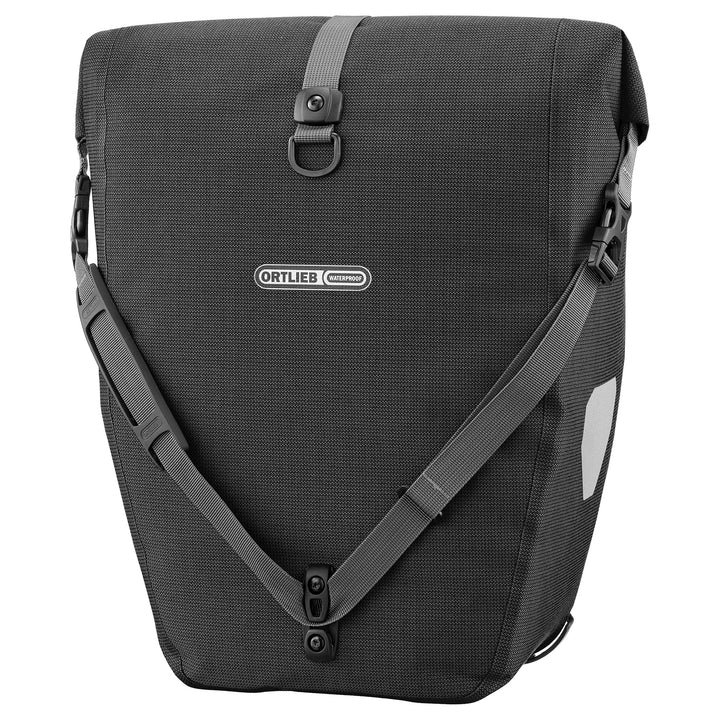

Models with the additions Plus, Plus CR, or Urban are made from a single-sided coated material. It is just as waterproof as the classic tarp material but looks more textile-like and elegant.

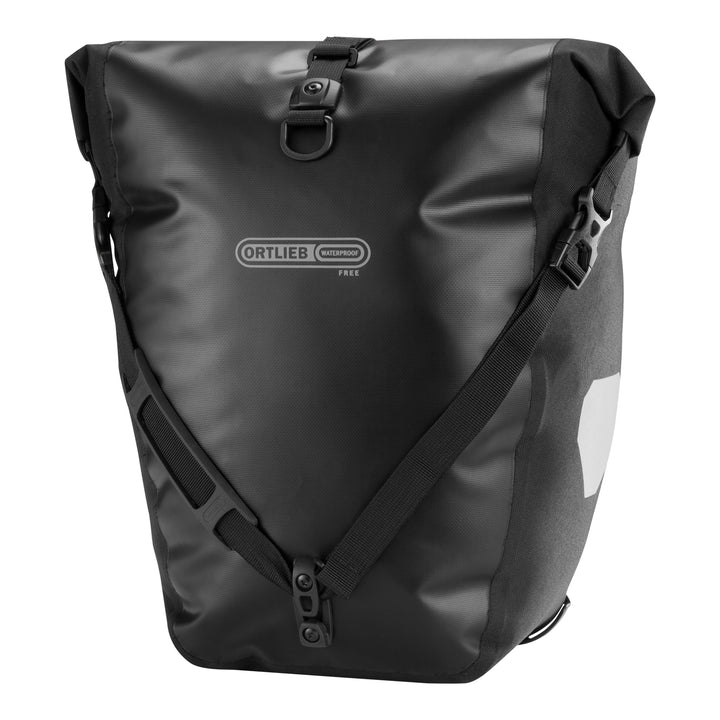

The Free models, like the Urban and Plus variants, are completely PVC-free while still retaining the typical feel of the tarp material.
For the Back-Roller Plus and Back-Roller Plus Urban, the “Plus” refers to the additional outer pocket. Both bags have a textile appearance.
The XL models offer 35 liters of storage space per bag and are particularly suitable for long tours or for anyone who likes to carry more luggage.

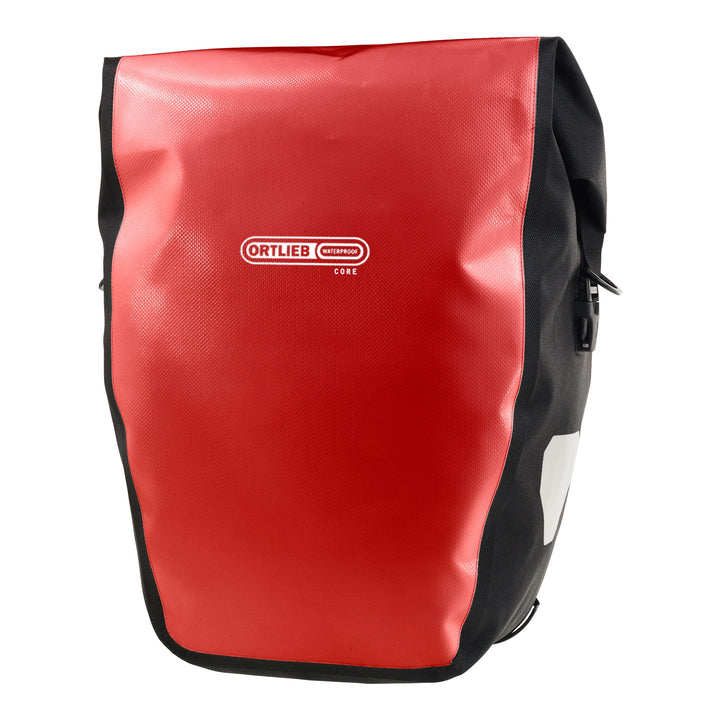

The Back-Roller Core is the entry-level model. It focuses on the essentials, is waterproof and robust, and does not include a shoulder strap or an inner pocket.

Most models feature the popular Quick-Lock2.1 mounting system. Some variants use alternative systems, which you can compare on our Quick-Lock overview page.

To Quick-Lock overview

What is the difference between Back-Roller and Sport-Roller?

Both models are waterproof, robust and equipped with the Quick-Lock system.
The Back-Roller is designed for the rear luggage rack and offers plenty of storage space with 20 liters per bag for longer tours or everyday use.
The Sport-Roller is more compact, holds 14.5 liters and is ideal as a front bag on a lowrider or for smaller bicycles.

How is the the Back-Roller Free mounted on the luggage rack?

With ORTLIEB’s Quick-Lock mounting systems, you can easily attach the bag to the luggage rack with one hand. Removing it is just as easy. You’ll find the exact mechanism for each Quick-Lock system on our overview page.

To Quick-Lock overview

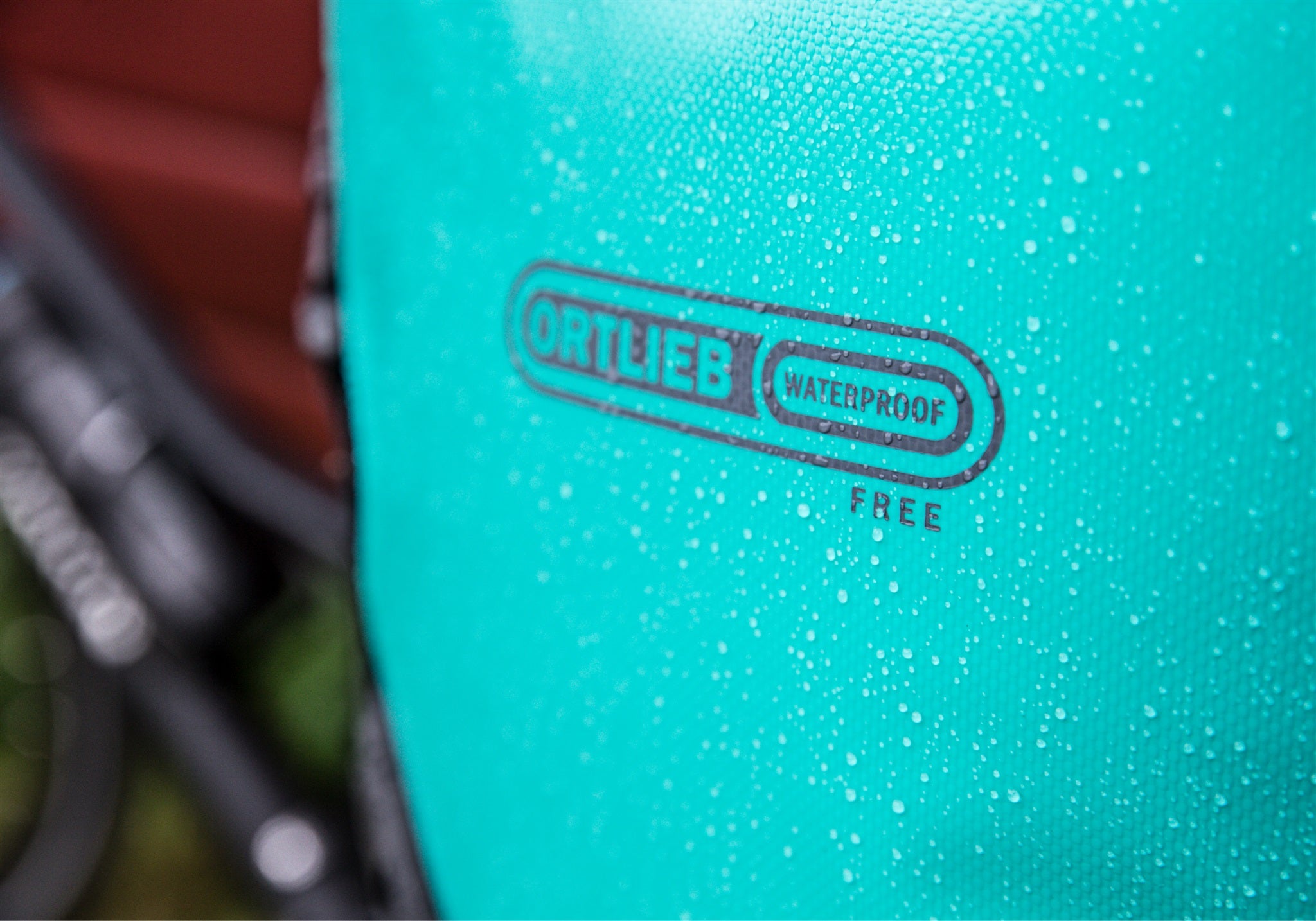

Is the Back-Roller Free waterproof?

The Back-Roller Free is waterproof according to protection class IP64. This rating indicates:

The product is dust-tight and protected against splashing water from all directions. Even in very heavy rain and splashing water, the contents stay perfectly dry. The Back-Roller Free is therefore ideal for longer outdoor adventures in stormy conditions.

More about waterproofness

Does the Back-Roller Free fit my luggage rack?

ORTLIEB bags with the Quick-Lock mounting system are compatible with almost all luggage racks. The Quick-Lock2.1 and Quick-Lock2.2 systems fit racks with tube diameters from 8 mm to 16 mm. Bags with Quick-Lock3.1 require special attachment points on the luggage rack, which can easily be retrofitted using a mounting kit if necessary.

To the QL3.1 mounting kit

Where is the Back-Roller Free manufactured?

The Back-Roller Free is manufactured in Heilsbronn, Germany, standing for genuine “Made in Germany” quality. Every production step, from material cutting to final inspection, takes place in our own facilities. Materials are sourced locally, regionally, or internationally according to strict requirements. Our high standards for raw materials extend the product’s lifespan and conserve resources.

More about Made in Germany

Is the Back-Roller Free worth the price?

ORTLIEB products stand for durability and repairability. The Back-Roller Free is manufactured in our factory in Heilsbronn, Germany. We source materials locally, regionally, or internationally depending on what meets our high standards. We invest time in development to ensure the functionality of every detail.

Thanks to long-lasting materials, the bag is a reliable companion. Its lifespan puts the purchase price into perspective, especially since we offer a five-year warranty on our products. A wide range of repair and upgrade options further improves the price-performance ratio.

Repair before replacement: Every product is designed to be easy to repair and can, in most cases, be serviced by our Customer Service team in Heilsbronn. This extends its lifespan and conserves resources.
